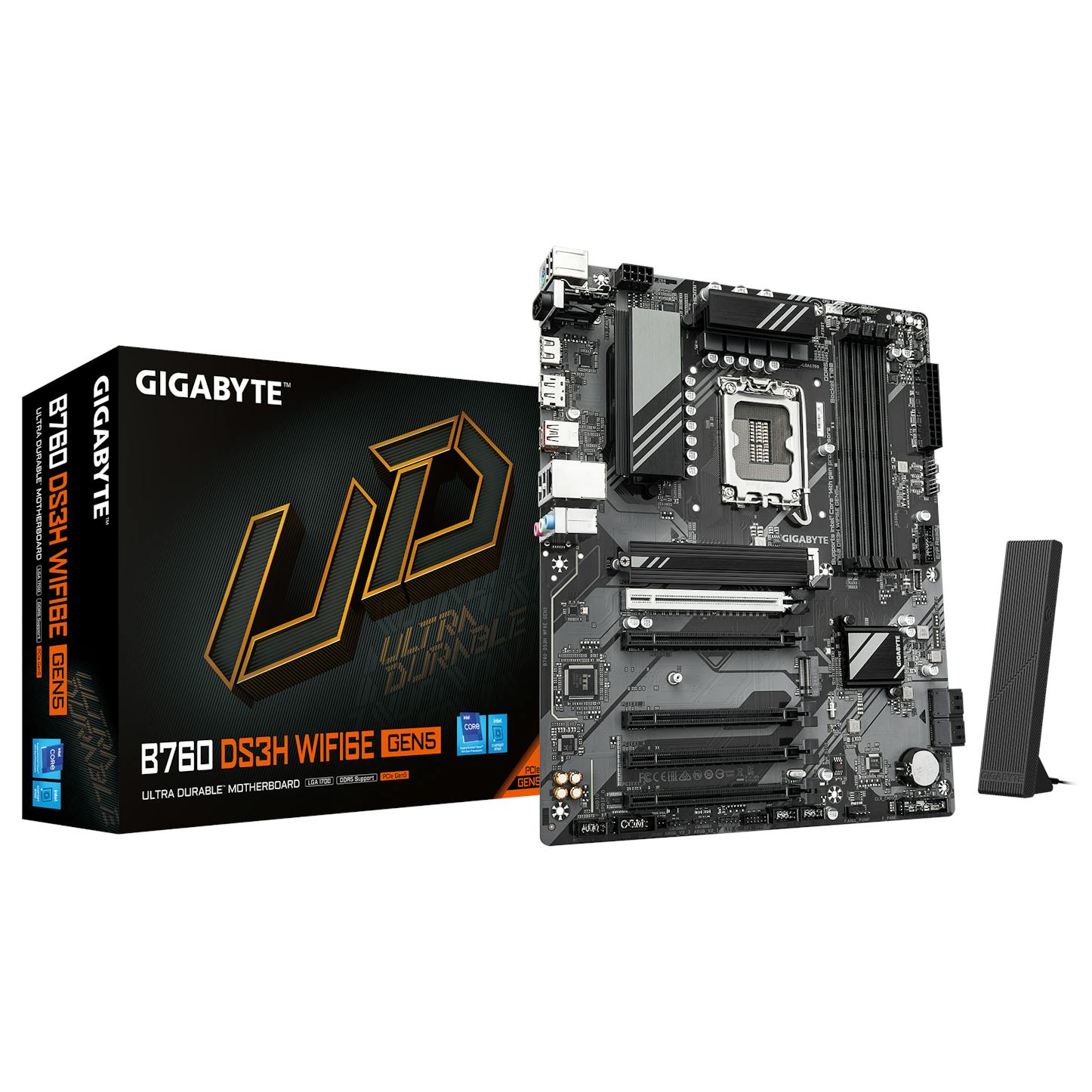

Gigabyte B760 DS3H WIFI6E GEN5 (LGA 1700) DDR5 ATX Motherboard

Manufacturer: Gigabyte | Model: B760 | Product ID: 4430
£6.00 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Form Factor
Motherboard formfactorATX
Wi-Fi & LAN
LANYes
LAN Ports1x 1 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetIntel B760
CPU
CPU ManufacturerIntel
CPU Socket1700
Fan Header
4 Pin Fan Connectors6
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Mon 31st Aug 2026 to Thu 03rd Sep 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sun 30th Aug 2026 to Tue 01st Sep 2026
View all Delivery Options & International Rates
Specification Details
CPU LGA1700 socket: Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron® processors
L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Memory DDR5 support up to 7600 MT/s (O.C.)
4 × DDR5 DIMM slots (up to 256 GB, 64 GB per DIMM)
Dual-channel architecture
ECC Un-buffered DIMM 1Rx8 / 2Rx8 (non-ECC mode)
Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16
XMP support
Onboard Graphics Intel® HD Graphics support
1 × HDMI (4096×2160 @ 60 Hz, HDMI 2.1, HDCP 2.3)
1 × DisplayPort (4096×2304 @ 60 Hz, DP 1.2, HDCP 2.3)
Audio Realtek® Audio CODEC
High Definition Audio
2 / 4 / 5.1 / 7.1-channel
S/PDIF Out support
LAN Realtek® GbE LAN (10 / 100 / 1000 Mbps)
Wireless Intel® Wi-Fi 6E AX210
Wi-Fi a/b/g/n/ac/ax (2.4 / 5 / 6 GHz)
Bluetooth® 5.3
Expansion Slots 1 × PCIe 5.0 x16 (CPU)
4 × PCIe 3.0 (x1 electrically)
Storage Interface 2 × M.2 PCIe 4.0 x4/x2
4 × SATA 6Gb/s
RAID 0 / 1 / 5 / 10 support (SATA)
USB USB Type-C® 3.2 Gen 2x2 (rear)
USB Type-C® 3.2 Gen 1 (internal)
USB 3.2 Gen 2 Type-A (rear)
USB 3.2 Gen 1 (internal)
USB 2.0 / 1.1 (rear & internal)
Internal I/O Connectors 24-pin ATX & 8-pin ATX 12V power
CPU fan & CPU pump headers
4 × system fan / pump headers
3 × ARGB Gen2 headers
1 × RGB header
Front panel & audio headers
S/PDIF Out header
USB headers (Type-C®, USB 3.2 Gen 1, USB 2.0)
TPM header
Serial port header
Q-Flash Plus, reset button, Clear CMOS jumper
Back Panel Connectors PS/2 keyboard/mouse
2 × Wi-Fi antenna connectors
USB Type-C® 3.2 Gen 2x2
USB 3.2 Gen 2 Type-A
4 × USB 2.0 / 1.1
HDMI
DisplayPort
RJ-45 LAN
3 × audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, and fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS 128 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC)
Q-Flash
Q-Flash Plus
Smart Backup
Bundled Software Norton® Internet Security (OEM)
LAN bandwidth management software
Operating System Windows 11 64-bit
Windows 10 64-bit
Form Factor ATX (30.5 cm × 24.4 cm)
Form Factor
Motherboard formfactorATX
Wi-Fi & LAN
LANYes
LAN Ports1x 1 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetIntel B760
CPU
CPU ManufacturerIntel
CPU Socket1700
Fan Header
4 Pin Fan Connectors6
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin
