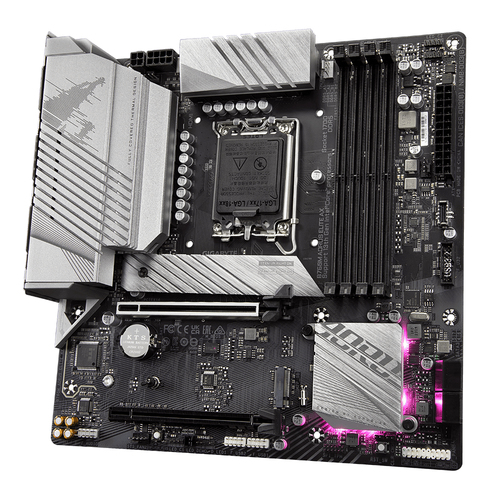

Gigabyte B760M AORUS ELITE AX motherboard Intel B760 LGA 1700 micro ATX

Manufacturer: Gigabyte | Model: B760M AORUS ELITE AX | Product ID: 0154
£153.86 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Non-ECCYes
Supported memory clock speeds4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600
Supported memory clock speed (max)7600
Maximum internal memory128
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of storage drives supported6
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportCrossFireX
Maximum resolution4096 x 2304
HDCPYes
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes
Thunderbolt headers2
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet,5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetIntel B760
Audio output channels7.1
PC health monitoringFAN,Temperature,Voltage,Water cooling
Component forPC
Motherboard form factorMicro ATX
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10,Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Weight & dimensions
Width244
Depth244
Packaging content
Bundled softwareNorton Internet Security

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
