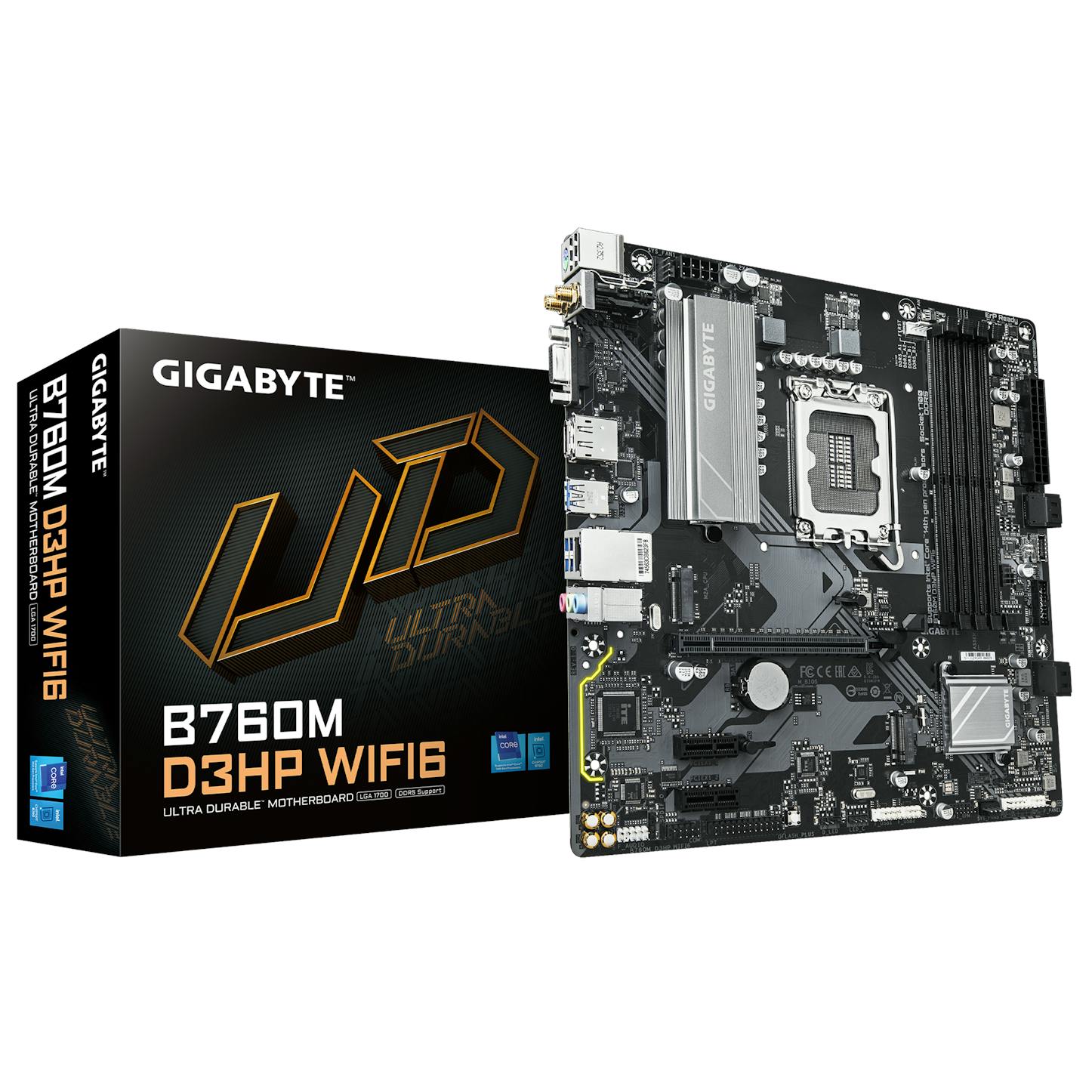

Gigabyte B760M D3HP WIFI6 (LGA 1700) DDR5 Micro-ATX Motherboard

Manufacturer: Gigabyte | Model: B760M | Product ID: 4427
£6.00 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 1 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetIntel B760
CPU
CPU ManufacturerIntel
CPU Socket1700
Fan Header
4 Pin Fan Connectors4
Memory
Max. Memory192 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Fri 28th Aug 2026 to Mon 31st Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Thu 27th Aug 2026 to Sat 29th Aug 2026
View all Delivery Options & International Rates
Item Specification
CPU LGA1700 socket: Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
L3 cache varies by CPU
Chipset Intel® B760 Express Chipset
Memory 4 × DDR5 DIMM slots, up to 192 GB (48 GB per DIMM)
Dual-channel memory architecture

14th / 13th Gen Intel® Core™ i9/i7:
DDR5 5600 / 5200 / 4800 / 4400 MT/s

13th Gen Intel® Core™ i5/i3 & 12th Gen Intel® Core™, Pentium® Gold, Celeron®:
DDR5 4800 / 4400 MT/s

Support for ECC & non-ECC Un-buffered DIMM (non-ECC mode)
Support for XMP memory modules
Onboard Graphics Intel® HD Graphics support (varies by CPU)

D-Sub × 1 (1920 × 1200 @ 60 Hz)
HDMI 2.1 × 1 (4096 × 2160 @ 60 Hz, HDCP 2.3)
DisplayPort 1.2 × 1 (4096 × 2304 @ 60 Hz)

Supports up to triple-display simultaneously
Audio Realtek® Audio CODEC
High Definition Audio
2 / 4 / 5.1 / 7.1-channel
S/PDIF Out support
LAN Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps)
Wireless Communication Realtek® Wi-Fi 6 RTL8851BE
Wi-Fi a/b/g/n/ac/ax (2.4 / 5 GHz)
Bluetooth® 5.3
Supports 11ax 80 MHz
Expansion Slots CPU:
1 × PCIe x16 slot (PCIe 4.0, x16)

Chipset:
2 × PCIe x1 slots (PCIe 3.0)
Storage Interface CPU:
1 × M.2 (PCIe 4.0 x4/x2, type 2280)

Chipset:
1 × M.2 (PCIe 4.0 x4/x2, type 2280)
4 × SATA 6 Gb/s

RAID 0 / 1 / 5 / 10 support (SATA)
USB Rear panel:
3 × USB 3.2 Gen 1
2 × USB 2.0/1.1

Internal:
1 × USB Type-C® (USB 3.2 Gen 1)
2 × USB 3.2 Gen 1
4 × USB 2.0/1.1
Internal I/O Connectors 24-pin ATX power × 1
8-pin ATX 12V power × 1
CPU fan header × 1
System fan headers × 3
Addressable LED header × 1
RGB LED header × 1
M.2 sockets × 2
SATA 6 Gb/s × 4
Front panel header × 1
Front panel audio × 1
USB Type-C® header × 1
USB 3.2 Gen 1 header × 1
USB 2.0/1.1 headers × 2
TPM header × 1
Serial port header × 1
Parallel port header × 1
S/PDIF Out header × 1
Q-Flash Plus button × 1
Reset jumper × 1
Clear CMOS jumper × 1
Back Panel Connectors USB 2.0/1.1 × 2
PS/2 × 1
SMA antenna connectors × 2
D-Sub × 1
DisplayPort × 1
HDMI × 1
USB 3.2 Gen 1 × 3
RJ-45 × 1
Audio jacks × 3
BIOS 128 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Windows 11 64-bit / Windows 10 64-bit
Form Factor Micro ATX (24.4 cm × 24.4 cm)
Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 1 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetIntel B760
CPU
CPU ManufacturerIntel
CPU Socket1700
Fan Header
4 Pin Fan Connectors4
Memory
Max. Memory192 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin
