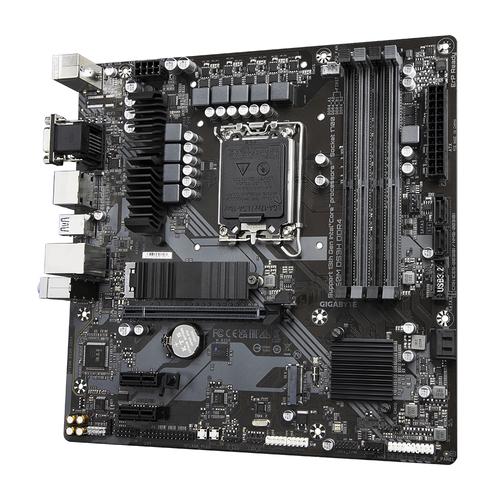

Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX

Manufacturer: Gigabyte | Model: B760M DS3H DDR4 | Product ID: 0150
£92.00 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933
Supported memory clock speed (max)4933
Maximum internal memory128
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of storage drives supported6
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304
HDCPYes
Number of displays supported4
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes
Parallel connectorYes
Serial port headers1
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity2
Headphone outputs1
Line-inYes
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Features
Motherboard chipsetIntel B760
Audio output channels7.1
PC health monitoringFAN,Temperature,Voltage,Water cooling
Component forPC
Motherboard form factorMicro ATX
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10,Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1
BIOS
BIOS typeUEFI AMI
BIOS memory size128
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Weight & dimensions
Width244
Depth244
Packaging content
Bundled softwareNorton Internet Security

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
6+2+1 Phases Hybrid Digital VRM Design
- 6+2+1 Phases Low RDS(on) MOSFETs
- Premium Choke and Capacitors to improve transient response and minimize oscillation

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
