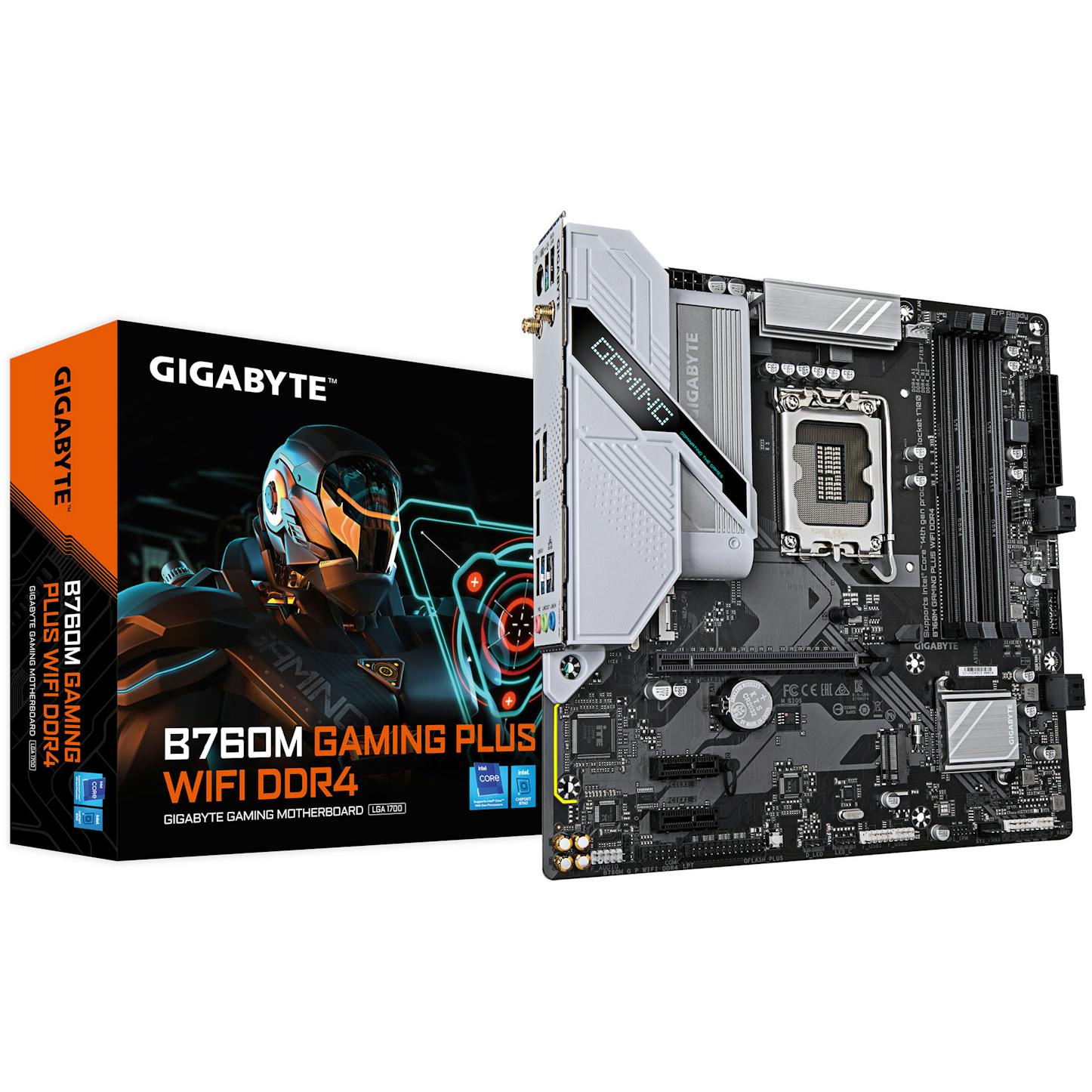

Gigabyte B760M GAMING PLUS WIFI DDR4 (LGA 1700) DDR4 Micro-ATX Motherboard
Product Technical Specification
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1700 |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | Intel B760 |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | White |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 6 |
| Bluetooth Standard | 5.3 |
| Fan Header | |
| 4 Pin Fan Connectors | 4 |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (Standard) | 3200 MT/s |
| Max. Memory Speed (OC) | 5333 MT/s |
| EEC Support | Yes |
| Memory slots | 4x |
| Performance Profile | Intel XMP |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 2 |
| USB 2.0 (internal) Possible Ports | 4 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 1x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x1 slots (total) | 2 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x1 mechanical slot | 2 |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 224 |
| SATA 6G (internal) | 4 |
| Cooling | |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| External Ports | |
| USB 3.0 (external) Type A | 3 |
| USB 2.0 (external) Type A | 2 |
| Display Connectors | HDMI (1x), Display Port (1x) |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Feature | Specification |
|---|---|
| CPU Socket | LGA1700 |
| CPU Support | 12th / 13th / 14th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel B760 |
| Memory Type | DDR4 |
| Memory Slots | 4 x DIMM |
| Max Memory | 128 GB |
| Memory Speed | 2133 – 5333 MT/s (OC) |
| Graphics Output | HDMI, DisplayPort |
| Max HDMI Resolution | 4096×2160 @60Hz |
| Max DP Resolution | 4096×2304 @60Hz |
| Audio | Realtek HD Audio, up to 7.1-channel |
| LAN | Realtek Gigabit Ethernet |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.3 |
| PCIe x16 | 1 x PCIe 4.0 |
| PCIe x1 | 2 x PCIe 3.0 |
| M.2 Slots | 2 x PCIe 4.0 |
| SATA Ports | 4 x SATA 6Gb/s |
| USB Ports | USB 3.2 Gen1, USB 2.0 |
| Form Factor | Micro-ATX |
| Operating System | Windows 10 / 11 (64-bit) |
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1700 |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | Intel B760 |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | White |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi Standard | Wi-Fi 6 |
| Bluetooth Standard | 5.3 |
| Fan Header | |
| 4 Pin Fan Connectors | 4 |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (Standard) | 3200 MT/s |
| Max. Memory Speed (OC) | 5333 MT/s |
| EEC Support | Yes |
| Memory slots | 4x |
| Performance Profile | Intel XMP |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 2 |
| USB 2.0 (internal) Possible Ports | 4 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 1x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x1 slots (total) | 2 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x1 mechanical slot | 2 |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 224 |
| SATA 6G (internal) | 4 |
| Cooling | |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| External Ports | |
| USB 3.0 (external) Type A | 3 |
| USB 2.0 (external) Type A | 2 |
| Display Connectors | HDMI (1x), Display Port (1x) |
