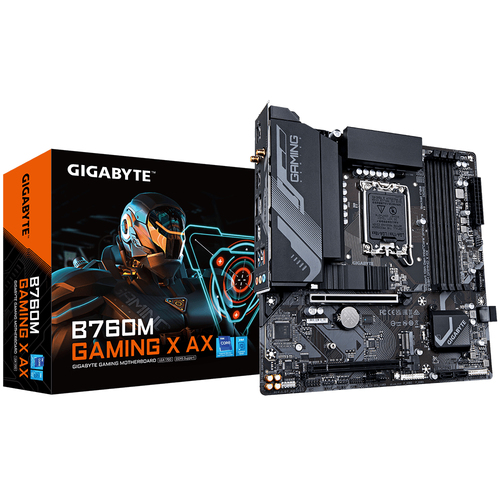

Gigabyte B760M Gaming X AX Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Manufacturer: Gigabyte | Model: B760M GAMING X AX | Product ID: 1161 | Warranty: 3 years
£130.90 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Pentium Gold
Maximum number of SMP processors2
Supported processor socketsLGA 1700
Maximum internal memory supported by processor192
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600
Supported memory clock speed (max)7600
Maximum internal memory192
Supported memory module capacities1GB,2GB,4GB,8GB,12GB,16GB,32GB,48GB
Unbuffered memoryYes
Storage controllers
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0,1,5,10
Graphics
Maximum resolution4096 x 2304
HDCPYes
DirectX version12.0
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
TPM connectorYes
Serial port headers1
Thunderbolt headers2
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.2
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetIntel B760 Express
Audio output channels7.1
Product colourBrown
PC health monitoringFAN,Temperature,Voltage,Water cooling
Component forPC
Motherboard form factorMicro ATX
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 10,Windows 11
Expansion slots
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originChina
Products per shipping (inner) case1
Battery
Battery weight3
Lithium weight per battery0.07
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width270
Package depth268
Package height68
Package weight1640
Weight & dimensions
Width244
Depth244
Height35
Packaging content
Cables includedSATA
Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Technical details
Warranty period3

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
