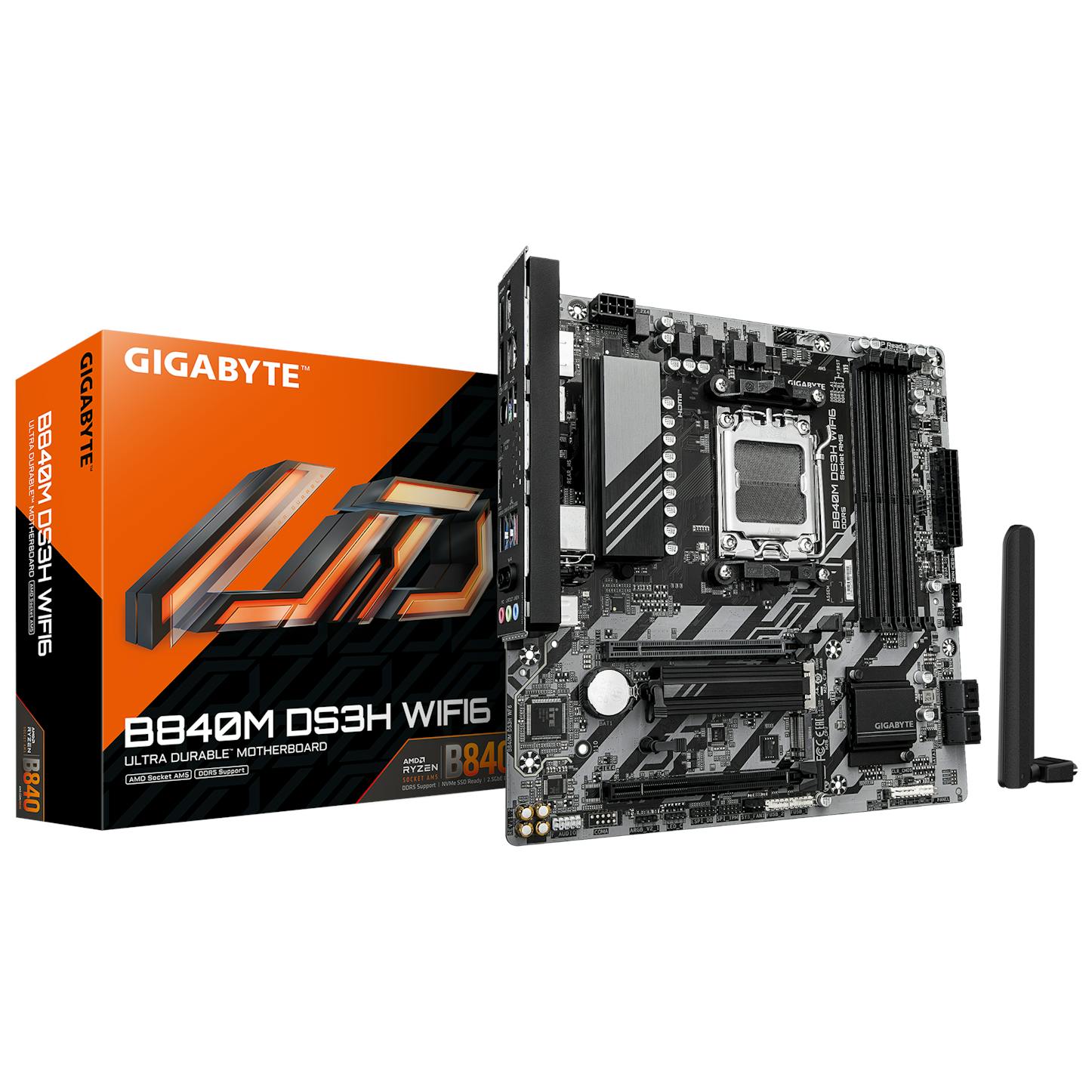

Gigabyte B840M DS3H WIFI6 (Socket AM5) DDR5 Micro-ATX Motherboard

Manufacturer: Gigabyte | Model: B840M | Product ID: 4420
£6.00 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 2.5 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetAMD B840
CPU
CPU ManufacturerAMD
CPU SocketAM5
Fan Header
4 Pin Fan Connectors4
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Thu 27th Aug 2026 to Sun 30th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Wed 26th Aug 2026 to Fri 28th Aug 2026
View all Delivery Options & International Rates
Category Details
CPU AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
(Check GIGABYTE website for latest CPU support list.)
Chipset AMD B840
Memory DDR5 8200(O.C) – 4400 MT/s, 4 DIMM slots supporting up to 256 GB (64 GB per DIMM), dual channel, non-ECC 1Rx8/2Rx8/1Rx16, AMD EXPO™ & XMP compatible.
Onboard Graphics Integrated AMD Radeon™ Graphics:
- 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR)
- 2 x DisplayPort (3840x2160@144Hz, DP 1.4)
- Supports up to triple-display simultaneously
(Specs may vary depending on CPU)
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, configurable via software
LAN Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless Realtek® Wi-Fi 6 RTL8851BE, 802.11a/b/g/n/ac/ax, 2.4/5 GHz, Bluetooth 5.3, 11ax 80MHz
Expansion Slots CPU: 1 x PCIe x16 (PCIe 4.0 x16/8/4 depending on CPU)
Chipset: 1 x PCIe x16 (PCIe 3.0 x4)
Storage Interface CPU: 2 x M.2 PCIe 4.0 x4/x2 (M2A_CPU, M2B_CPU)
Chipset: 1 x M.2 PCIe 3.0 x4/x2 (M2C_SB), 4 x SATA 6Gb/s
RAID: NVMe 0/1/5/10 (RAID 5 only Ryzen 9000), SATA 0/1/10
USB CPU: 1 x USB Type-C 3.2 Gen1 (back), 1 x USB 3.2 Gen1 (back), 4 x USB 2.0/1.1 (back)
Chipset: 1 x USB Type-C 3.2 Gen1 (internal), 1 x USB 3.2 Gen1 (back), 2 x USB 3.2 Gen1 (internal), 4 x USB 2.0/1.1 (internal)
Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX 12V, CPU/system fan & pump headers, 3 x system fan headers, 2 x addressable RGB headers, 1 x RGB header, 2 x M.2 sockets, 4 x SATA 6Gb/s, front panel headers, USB Type-C 3.2 Gen1 header, Trusted Platform Module header, reset & Clear CMOS jumpers
Back Panel Connectors 1 x HDMI, 2 x DisplayPort, Q-Flash Plus, PS/2 port, 1 x USB Type-C 3.2 Gen1, 2 x USB 3.2 Gen1, 4 x USB 2.0/1.1, 2 x antenna connectors (1T1R), 1 x RJ-45, 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Fan speed control
BIOS 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software Norton® Internet Security (OEM version)
Operating System Windows 11 & Windows 10 64-bit
Form Factor Micro ATX, 24.4cm x 24.4cm
Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 2.5 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourGrey
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetAMD B840
CPU
CPU ManufacturerAMD
CPU SocketAM5
Fan Header
4 Pin Fan Connectors4
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply1x 8-Pin
