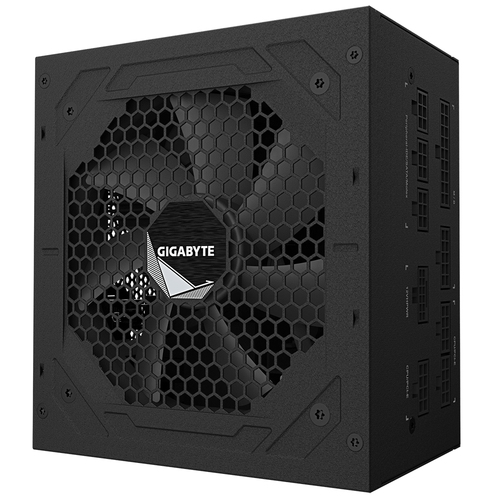

Gigabyte GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX ATX Black

Manufacturer: Gigabyte | Model: GP-UD850GM PG5 V2 | Product ID: 0870
£93.12 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Power
Total power850
AC input voltage100 - 240
AC input frequency50 - 60
Input current12 - 6
Maximum input current (@110V)6
Maximum input current (@220V)12
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)105
Combined power (+12V)850
Combined power (+5V)105
Combined power (-12V)3.6
Combined power (+5Vsb)15
Max output current (+3.3V)20
Max output current (+12V)70.8
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)3
Hold time16
Efficiency90
Power protection featuresOver current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Ports & interfaces
Motherboard power connector20+4 pin ATX
Motherboard power cable length610
Number of SATA power connectors8
Number of PATA power connectors3
SATA power cable length150,600
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length200,600
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (16-pin)1
PCI Express power cable length700
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
Performance
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
Noise level40
Mean time between failures (MTBF)100000
Design
Product colourBlack
Cooling typeActive
Fan diameter120
Number of fans1
Fan locationTop
IlluminationNo
Packaging content
Cable tie(s) includedYes
Weight & dimensions
Width150
Depth140
Height85
Packaging data
Package typeBox
Technical details
Sustainability certificatesCCC,CE,Federal Communications Commission (FCC),RoHS
Warranty period5

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Support PCIe Gen 5.0 graphics card
The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

ULTRA DURABLE
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

ENHANCED THERMAL SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

PLENTIFUL POWER SUPPLY
The +12VHPWR and the +12V can provide a total of 850W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.


Power
Total power850
AC input voltage100 - 240
AC input frequency50 - 60
Input current12 - 6
Maximum input current (@110V)6
Maximum input current (@220V)12
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)105
Combined power (+12V)850
Combined power (+5V)105
Combined power (-12V)3.6
Combined power (+5Vsb)15
Max output current (+3.3V)20
Max output current (+12V)70.8
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)3
Hold time16
Efficiency90
Power protection featuresOver current,Over power,Over voltage,Overheating,Short circuit,Under voltage
Ports & interfaces
Motherboard power connector20+4 pin ATX
Motherboard power cable length610
Number of SATA power connectors8
Number of PATA power connectors3
SATA power cable length150,600
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length200,600
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (16-pin)1
PCI Express power cable length700
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
Performance
80 PLUS certification80 PLUS Gold
PurposePC
Power supply unit (PSU) form factorATX
Noise level40
Mean time between failures (MTBF)100000
Design
Product colourBlack
Cooling typeActive
Fan diameter120
Number of fans1
Fan locationTop
IlluminationNo
Packaging content
Cable tie(s) includedYes
Weight & dimensions
Width150
Depth140
Height85
Packaging data
Package typeBox
Technical details
Sustainability certificatesCCC,CE,Federal Communications Commission (FCC),RoHS
Warranty period5
