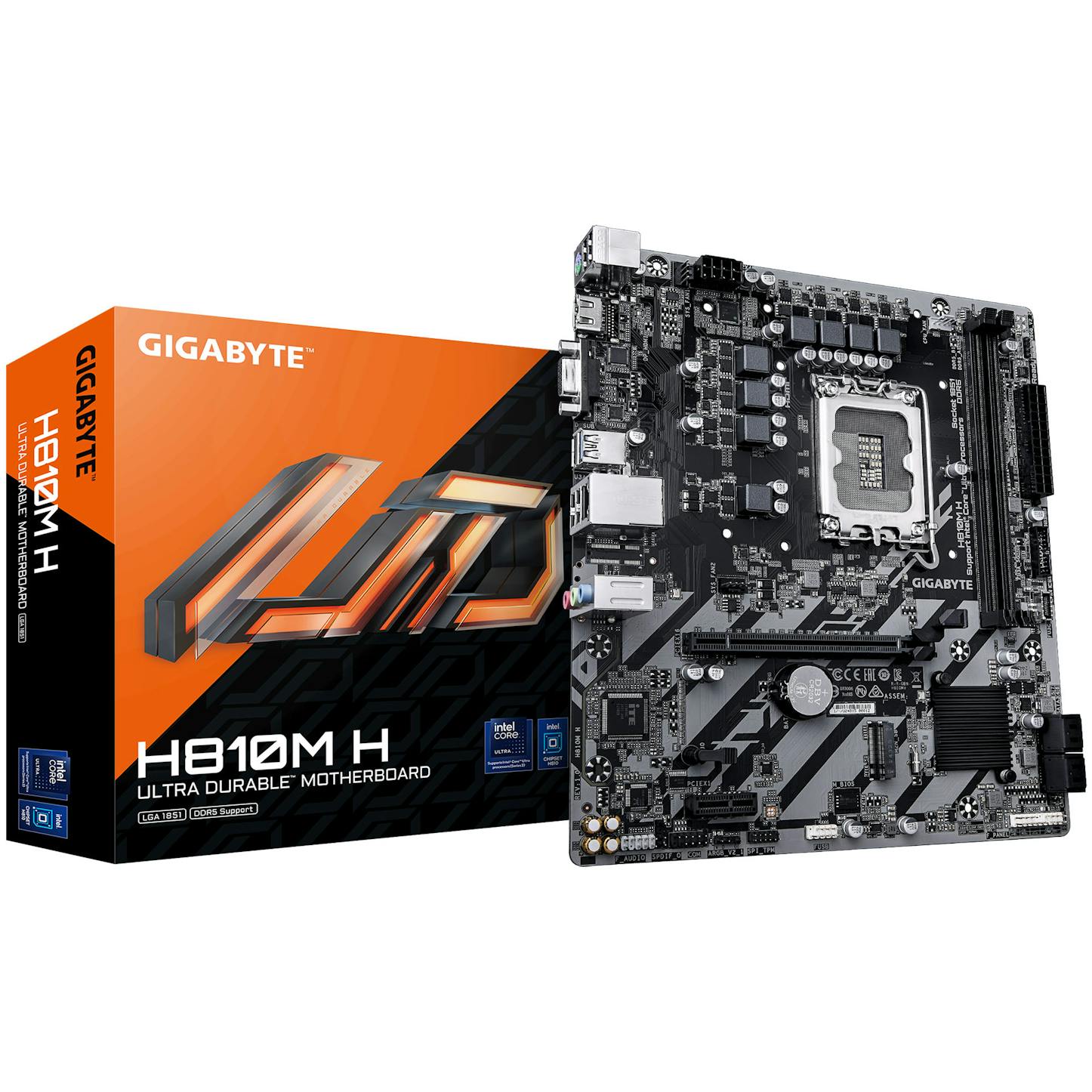

Gigabyte H810M H (LGA1851) DDR5 Micro-ATX Motherboard
Product Technical Specification
| Motherboard | |
| Motherboard Chipset | Intel H810 |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1851 |
| Lighting | |
| Lighting / RGB | Yes |
| Colour | |
| Primary Colour | Black |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | No |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (OC) | 6400 MT/s |
| EEC Support | Yes |
| Memory slots | 2x |
| Performance Profile | Intel XMP 3.0 |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 1 |
| USB 2.0 (internal) Possible Ports | 2 |
| RGB / LED connectors | 2x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x1 slots (total) | 1 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x1 mechanical slot | 1 |
| Cooling | |
| M.2 Heatsinks | Yes |
| VRM Heatsinks | Yes |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| SATA 6G (internal) | 3 |
| External Ports | |
| USB 3.0 (external) Type A | 1 |
| USB 2.0 (external) Type A | 5 |
| Display Connectors | VGA (D-Sub) (1x), HDMI (1x) |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Specification | Details |
|---|---|
| CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU |
| Chipset | Intel® H810 Express Chipset |
| Memory |
DDR5 6400 / 5600 MT/s support 2 × DDR5 DIMM slots (up to 128 GB, 64 GB per DIMM) Dual-channel architecture ECC Un-buffered DIMM 1Rx8 / 2Rx8 (non-ECC mode) Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 Support for XMP |
| Onboard Graphics |
Intel® HD Graphics support 1 × HDMI (4096×2160 @ 60 Hz, HDMI 2.1, HDCP 2.3) 1 × D-Sub (1920×1200 @ 60 Hz) |
| Audio |
Realtek® Audio CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel S/PDIF Out support |
| LAN | Realtek® GbE LAN (10 / 100 / 1000 Mbps) |
| Expansion Slots |
1 × PCIe 4.0 x16 (CPU) 1 × PCIe 3.0 x1 (Chipset) |
| Storage Interface |
1 × M.2 (PCIe 4.0 x4/x2, 2280) 4 × SATA 6Gb/s |
| USB |
1 × USB Type-C® (USB 3.2 Gen 1, internal) 3 × USB 3.2 Gen 1 7 × USB 2.0 / 1.1 |
| Internal I/O Connectors |
24-pin ATX power 8-pin ATX 12V power CPU fan header 2 × system fan headers 2 × addressable RGB Gen2 headers M.2 socket 4 × SATA connectors Front panel & audio headers S/PDIF Out header USB Type-C®, USB 3.2 Gen 1, USB 2.0 headers TPM header (GC-TPM2.0 SPI V2 only) Serial port header Clear CMOS jumper |
| Back Panel Connectors |
PS/2 keyboard/mouse HDMI D-Sub USB 3.2 Gen 1 5 × USB 2.0 / 1.1 RJ-45 LAN 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, and fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS |
256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
GIGABYTE Control Center (GCC) Q-Flash Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System |
Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm × 21.5 cm) |
