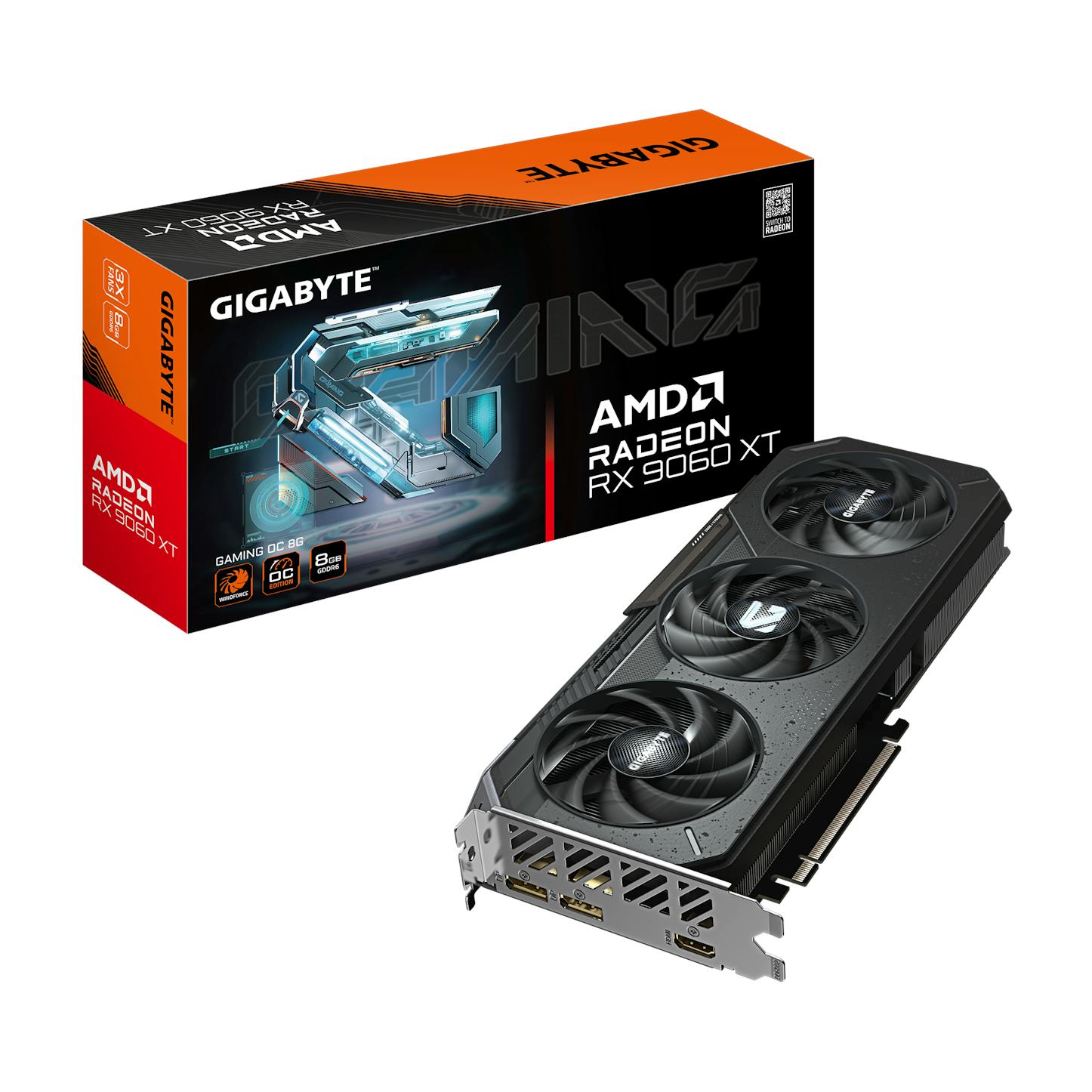

Gigabyte Radeon RX 9060 XT Gaming OC 8GB PCI-Express Graphics Card
Product Technical Specification
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 281 mm |
| Width | 118 mm |
| Height | 40 mm |
| AI | |
| AI Acceleration | Yes |
| AI Accelerator | AMD AI-Accelerator |
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | Yes |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9060 XT 8GB |
| Graphics Chip | Navi 44 |
| Manufacturing Process | 4 nm |
| Shader Units | 2048 |
| Raytracing Cores / Ray Acceleratorss | 32 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 32 |
| GPU Memory Size (GB) | 8 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 320 |
| GPU Effective Memory Clock (MHz) | 20000 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Take your gaming to new heights, courtesy of the Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card. Harnessing RDNA 4 architecture with 32 compute units, this GPU renders your favourite gaming worlds in stunning high definition, ensuring you see every second of the action as it happens around you. Enhanced ray tracing and AI-powered upscaling deliver true-to-life lighting and shadows, along with silky-smooth frame rates, heightening your immersion like never before. Plus, 8GB of GDDR6 VRAM keeps your workloads efficient, eliminating lag or latency for an uninterrupted experience every time.
Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card at a Glance:
- RDNA 4 architecture
- 32 compute units – third-gen RT and second-gen AI accelerators
- 3320MHz boost clock speed – unlocked for overclocking
- 8GB GDDR6 VRAM
- 128-bit interface
- PCIe 5.0 connectivity
RDNA 4 Architecture
Built upon RDNA 4 architecture, the Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card delivers unparalleled performance, rapid speeds, and lifelike visuals. Take advantage of the 32 compute units, paired with third-gen RT and second-gen AI accelerators, to unlock enhanced ray tracing capabilities that render the battlefield in glorious detail. Onboard support for AMD’s suite of AI-powered technologies, including FSR 4.0, facilitates buttery-smooth frames with near-zero screen tearing or ghosting.
In addition to this, the 8GB of GDDR6 keeps operations efficient and multitasking seamless, perfect for both work and play.
WINDFORCE Cooling
The Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card features an onboard WINDFORCE cooling solution, combining server-grade thermal conductive gel, innovative Hawk fans, and a large vapour chamber to draw and dissipate heat rapidly.
The vapour chamber makes direct contact with the GPU, effectively transferring heat into the composite copper heat pipes. The hot air is then quickly dispelled by the three Hawk fans. Boasting a unique aerodynamic design, these fans notably reduce air resistance whilst reducing noise production for a 53.6% increase in air pressure.
The fans are pre-configured to spin in alternate directions, further reducing turbulence and increasing airflow pressure for more effective cooling during intensive workloads. What’s more, 3D Active Fan provides you with semi-passive cooling. The fans stop spinning when the Gigabyte RX 9060 XT is idle and ramp up again when temperatures increase. This strikes the perfect balance between outstanding thermal performance and whisper-quiet operation.
Additionally, the extended heatsink allows more air to pass through this graphics card, enhancing heat dissipation, enabling the Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card to perform at optimum temperatures even under heavy loads.
Built to Last
To ensure the Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card withstands all your fast-paced gaming marathons, this GPU has been engineered utilising only the finest-quality materials. Ultra durable certified metal chokes, lower ESR solid capacitors, and reduced RDS(on)MOSFETS have been fine-tuned to deliver superior performance and outstanding long-lasting stability.
The PCB features a user-friendly design, eliminating any sharp protrusions on the solder connections to prevent you from cutting your hands or inadvertently damaging other components. A reinforced metal backplate with a curved edge securely fastens to the I/O bracket, providing incredible structural integrity.
Stylish RGB
To ensure the Gigabyte Radeon RX 9060 XT Gaming OC 8GB GDDR6 Graphics Card makes a striking addition to your set-up, this GPU features integrated RGB lighting. Customisable in GIGABYTE CONTROL CENTER, choose from 16.8 million colours and a variety of lighting effects to synchronise the Gigabyte RX 9060 XT with the rest of your hardware.
The power armour design with a sliding side plate enables you to customise this graphics card further to match your unique aesthetic.
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 281 mm |
| Width | 118 mm |
| Height | 40 mm |
| AI | |
| AI Acceleration | Yes |
| AI Accelerator | AMD AI-Accelerator |
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | Yes |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9060 XT 8GB |
| Graphics Chip | Navi 44 |
| Manufacturing Process | 4 nm |
| Shader Units | 2048 |
| Raytracing Cores / Ray Acceleratorss | 32 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 32 |
| GPU Memory Size (GB) | 8 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 320 |
| GPU Effective Memory Clock (MHz) | 20000 |
