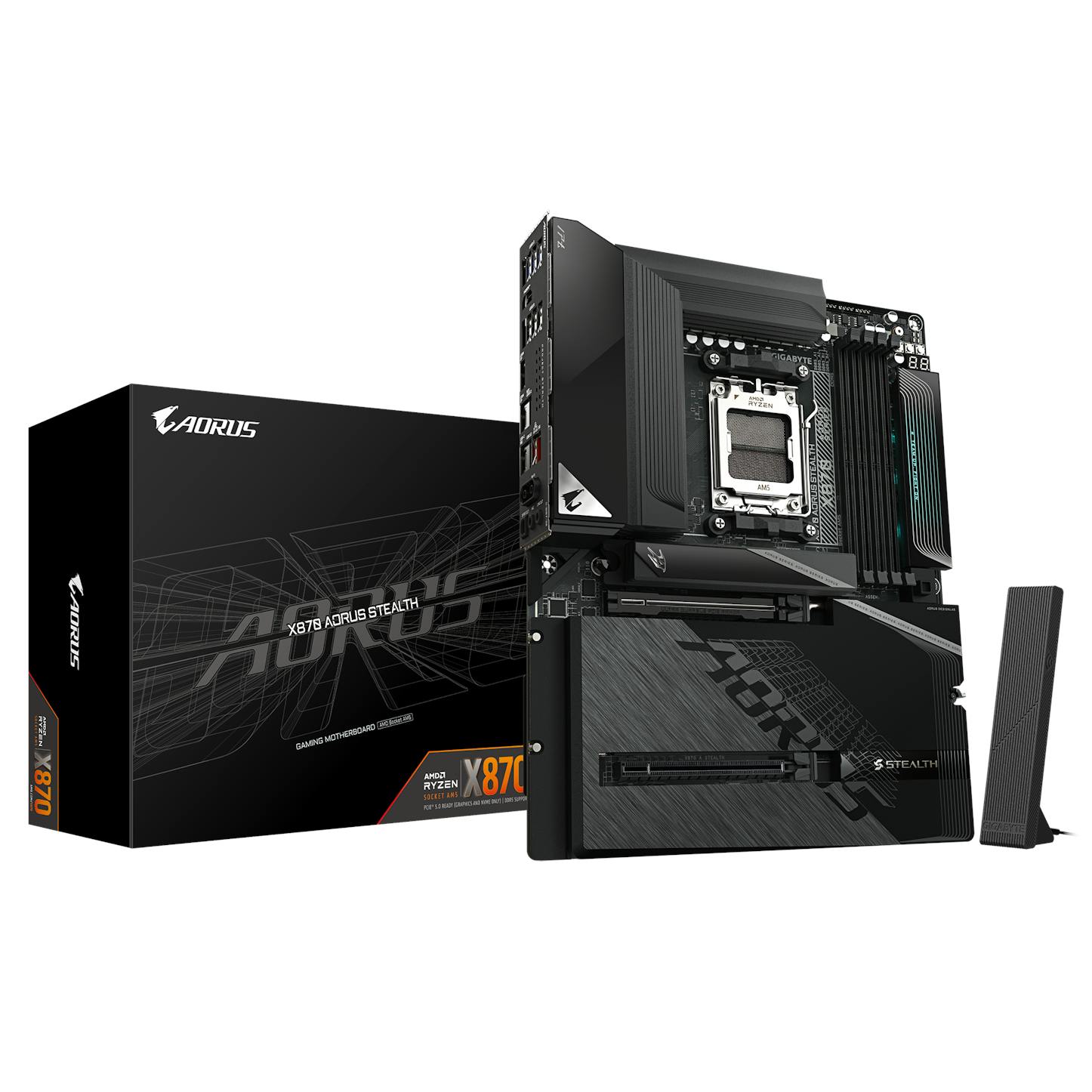

Gigabyte X870 Aorus Stealth (Socket AM5) DDR5 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD X870 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 8 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors. (Check GIGABYTE website for latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | DDR5 8200(O.C)–4400 MT/s, 4 DIMM slots up to 256 GB (64 GB per DIMM), dual channel, non-ECC 1Rx8/2Rx8/1Rx16, AMD EXPO™ & XMP compatible. |
| Onboard Graphics |
Integrated AMD Radeon™ Graphics + ASMedia USB4® Controller: - 2 x USB4® Type-C (3840x2160@240Hz, DisplayPort 1.4 & HDR) - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) (Specs may vary depending on CPU) |
| Audio | Realtek® ALC1220 CODEC, 2/4/5.1/7.1-channel, S/PDIF Out, back panel line out supports DSD audio |
| LAN | Realtek® 5GbE LAN chip (5/2.5/1/0.1 Gbps) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865, 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, Bluetooth 5.4, Wi-Fi 7 channels may vary by region |
| Expansion Slots |
CPU: 1 x PCIe x16 (PCIe 5.0/4.0/4.0 depending on CPU) Chipset: 1 x PCIe x16 (PCIe 4.0 x4, shares bandwidth with M2D_SB), 1 x PCIe x16 (PCIe 3.0 x2) |
| Storage Interface |
CPU: 2 x M.2 connectors (PCIe 5.0/4.0 depending on CPU) Chipset: 2 x M.2 PCIe 4.0 x4/x2, 2 x SATA 6Gb/s RAID: NVMe 0/1/5/10 (RAID 5 only Ryzen 9000), SATA 0/1 |
| USB |
CPU+ASMedia USB4®: 2 x USB4 Type-C (back, shares bandwidth with M2B_CPU) CPU: 1 x USB Type-C 3.2 Gen2 (back), 4 x USB 3.2 Gen1 (back), 4 x USB 2.0/1.1 (back) Chipset: 1 x USB Type-C 3.2 Gen2x2 (internal), 2 x USB 3.2 Gen2 Type-A (red, back), 2 x USB 3.2 Gen1 (internal), 4 x USB 2.0/1.1 (internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin ATX 12V, CPU/system fan & pump headers, 3 x addressable RGB headers, 1 x RGB header, 4 x M.2 sockets, 2 x SATA 6Gb/s, front panel headers, USB Type-C 3.2 Gen2x2 header, noise detection header, TPM header, Q-Flash Plus button, power & reset buttons, reset & Clear CMOS jumpers, 2 x temperature sensor headers, HDMI port |
| Back Panel Connectors | 1 x HDMI, 2 x antenna (2T2R), 2 x USB4 Type-C (DisplayPort), 1 x USB Type-C 3.2 Gen2, 2 x USB 3.2 Gen2 Type-A (red), 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1, 1 x RJ-45, 1 x optical S/PDIF Out, 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Fan speed control |
| BIOS | 512 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD X870 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 8 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
