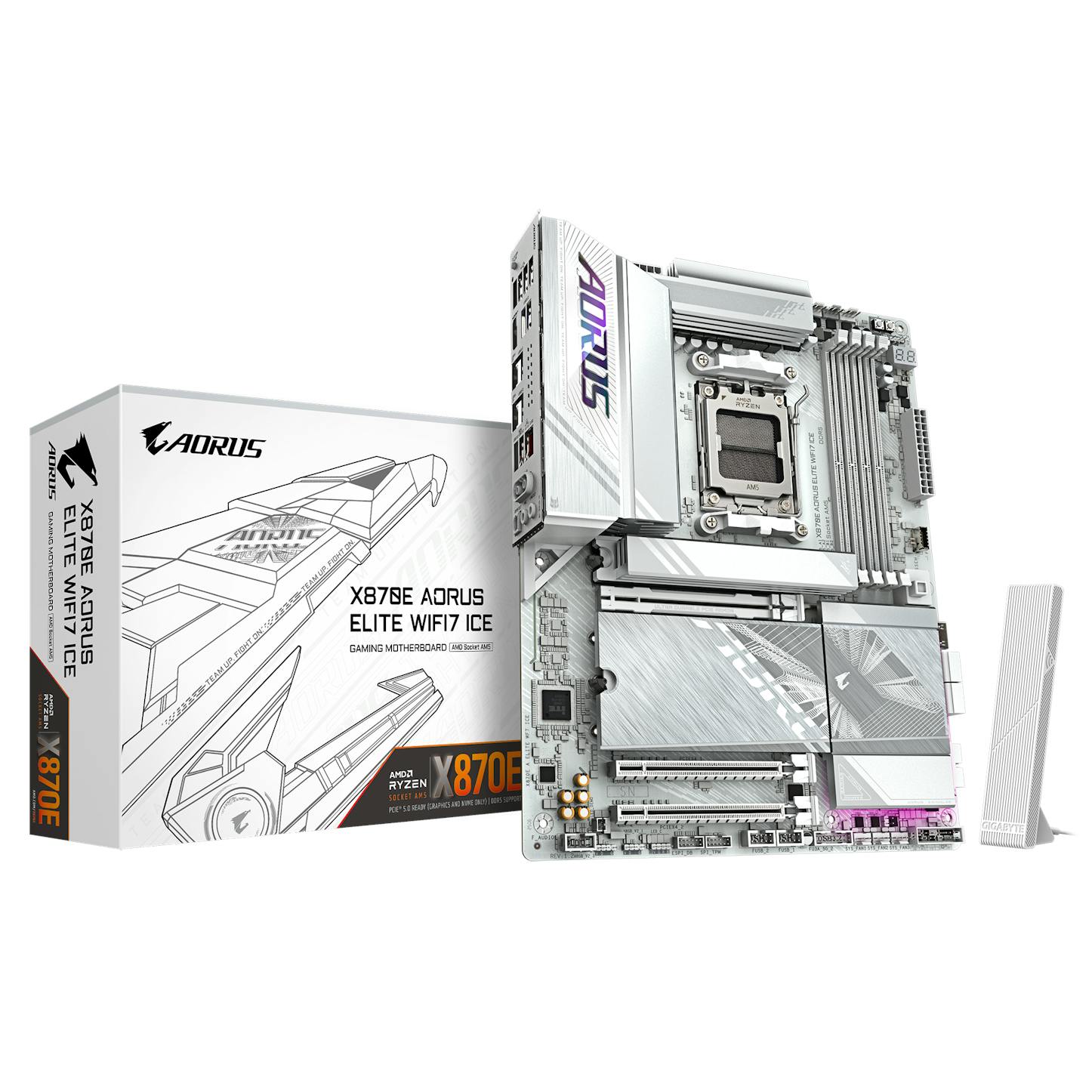

Gigabyte X870E Aorus Elite WIFI7 Ice (Socket AM5) DDR5 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | White |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD X870E |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 6 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| CPU Support | AMD Socket AM5, support for: - AMD Ryzen™ 9000 Series Processors - AMD Ryzen™ 8000 Series Processors - AMD Ryzen™ 7000 Series Processors (Visit GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD X870E |
| Memory | |
|---|---|
| Supported Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| Memory Slots | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB per DIMM) |
| Channel Architecture | Dual Channel |
| Memory Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules; supports AMD EXPO™ and XMP |
| Onboard Graphics | |
| Integrated GPU | Integrated AMD Radeon™ Graphics (varies by CPU) |
| USB4 Controller | ASMedia USB4® Controller |
| USB4 Ports | 2 x USB4® Type-C® (DisplayPort, max 3840x2160@240Hz, HDR, DP 1.4) |
| HDMI Ports |
- 1 x HDMI port (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) - 1 x Front HDMI port (1920x1080@30Hz, HDMI 1.4) |
| Multi-Display | Support for up to quad-display simultaneously |
| Audio | |
| Audio Codec | Realtek® ALC1220 CODEC |
| Audio Channels | 2/4/5.1/7.1-channel HD Audio (configurable via software) |
| Additional Features | DSD Audio on back line-out; S/PDIF Out supported |
| Networking | |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Realtek® Wi-Fi 7 (RTL8922AE) - Wi-Fi 7 (a/b/g/n/ac/ax/be), 2.4/5/6 GHz bands - Bluetooth® 5.4 - 160MHz channel support * Windows 11 SV3 required; not supported on Windows 10 |
| Expansion Slots | |
| CPU PCIe Slot | 1 x PCIe x16 (PCIEX16): - Ryzen™ 9000/7000: PCIe 5.0 x16 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4 * Shared bandwidth with M2B_CPU/M2C_CPU * Use PCIEX16 slot for single GPU |
| Chipset Slots |
- 1 x PCIe x16 (PCIEX4_1), PCIe 4.0 x4 - 1 x PCIe x16 (PCIEX4_2), PCIe 3.0 x4 |
| Storage | |
| CPU M.2 Slots |
- 1 x M2A_CPU: PCIe 5.0/4.0 x4/x2 (type 25110/22110/2280) - 2 x M2B_CPU & M2C_CPU: PCIe 5.0 x4/x2 (type 22110/2280) * M2B_CPU & M2C_CPU unavailable with Ryzen™ 8000 |
| Chipset M.2 Slot | 1 x M2D_SB (PCIe 4.0 x4/x2, 22110/2280) |
| SATA Ports | 4 x SATA 6Gb/s (RAID 0/1/5/10 support) |
| USB Ports | |
| CPU + ASMedia | 2 x USB4 Type-C (rear) |
| CPU | 1 x USB 3.2 Gen 1 (rear) |
| Chipset |
- 1 x USB 3.2 Gen 2x2 Type-C (internal) - 2 x USB 3.2 Gen 2 Type-A (red, rear) - 7 x USB 3.2 Gen 1 (3 rear, 4 internal) - 8 x USB 2.0/1.1 (4 rear, 4 internal) |
| Internal I/O | |
| Power | 1 x 24-pin ATX, 2 x 8-pin 12V connectors |
| Cooling Headers | 1 x CPU fan, 1 x CPU pump, 3 x system fan, 1 x system/pump fan |
| Lighting | 3 x ARGB Gen2 headers, 1 x RGB header |
| Storage I/O | 4 x M.2, 4 x SATA |
| USB Headers | 1 x USB-C 3.2 Gen2x2, 2 x USB 3.2 Gen1, 2 x USB 2.0 |
| Other Headers | TPM header, Front panel, Audio, Reset, Clear CMOS, Power button |
| Back Panel | |
| Connectors |
- 1 x Q-Flash Plus button - 4 x USB 2.0/1.1 - 4 x USB 3.2 Gen 1 - 2 x USB 3.2 Gen 2 Type-A (red) - 2 x USB4 Type-C (DisplayPort) - 1 x HDMI - 1 x RJ-45 (2.5GbE) - 2 x Wi-Fi antenna connectors - 2 x audio jacks + 1 x optical S/PDIF Out |
| Other Components | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow, fan fail warning, fan control |
| BIOS | 256 Mbit AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | |
| Software | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | |
| OS Support | Windows 11 64-bit |
| Form Factor | |
| Type | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | White |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD X870E |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 6 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
