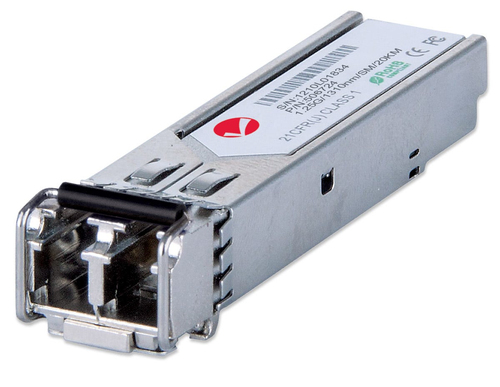

Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Lx (LC) Single-Mode Port, 20km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Three Year Warranty
Product Technical Specification
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| SFP transceiver standard | LX |
| Maximum transfer distance | 20000 |
| Wavelength | 1310 |
| Tx power (min) | -8 |
| Tx power (max) | -3 |
| Link budget | 8 |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full,Half |
| Features | |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Certification | FCC Class A, CE, RoHS, IEC-60825 |
| Power | |
| Input voltage | 3.3 |
| Power consumption (typical) | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 10 - 85 |
| Weight & dimensions | |
| Width | 13 |
| Depth | 55 |
| Height | 12 |
| Weight | 62 |
| Packaging data | |
| Number of products included | 1 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver is available as a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Multi-Vendor Compatible _x000D_
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other MSA-compliant, SFP-enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor on GLC-LH-SM, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.
