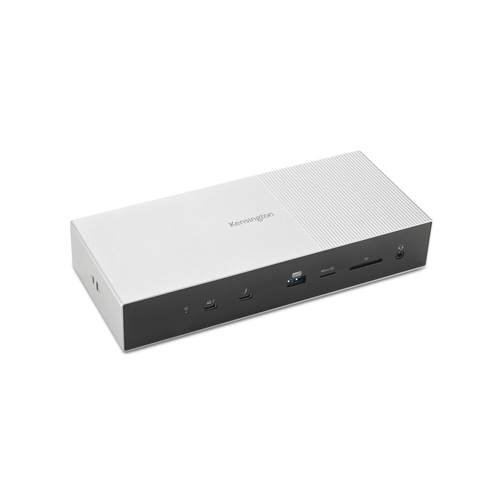

Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 |
| Thunderbolt 5 ports quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),SD |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 3 |
| Maximum refresh rate | 540 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington,Nano |
| Product colour | Black,Grey |
| LED indicators | Power |
| Plug and Play | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS),Aluminium,Polycarbonate (PC) |
| Country of origin | China |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 2.5 |
| Output voltage | 20 |
| Output current | 9 |
| Software | |
| Windows operating systems supported | Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -18 - 60 |
| Operating relative humidity (H-H) | 0 - 55 |
| Weight & dimensions | |
| Width | 226 |
| Depth | 97 |
| Height | 40 |
| Weight | 975 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 264 |
| Package depth | 125 |
| Package height | 154 |
| Package weight | 1900 |
| Packaging content | |
| Warranty card | Yes |
| Cables included | AC,Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CB,CE,Federal Communications Commission (FCC),RCM,RoHS,UKCA |
| Logistics data | |
| Products per master (outer) case | 6 |
| Other features | |
| Minimum system requirements | CPU: Intel Core HX series 13th /14th+ |
Delivery Options
Economy Delivery (UK)
Business Express
Boost Your Productivity with Thunderbolt™ 5
The SD5000T5 offers lightning-fast data transfers, achieving speeds up to 80Gbps and Bandwidth Boost providing up to 120Gbps for video-intensive usage.
Recycled Materials
Contains 100% post-consumer recycled (PCR) aluminum*– and delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.
Triple 4K or Dual 8K Support
Supporting up to three 4K monitors at 144Hz or two 8K monitors at 60Hz, MacBook models with M4 Base, or M1/M2/M3/M4 Pro and Max, support up to two 6K monitors at 60Hz. The SD5000T5 ensures uncompromised visual quality and smooth multitasking for a high-performance workspace.
Up to 140W Power Delivery
Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery.
Productive 11-in-1 Design
3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity.
Built-in SD and Micro SD Card Readers
Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5000T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
Universal Compatibility
Offers a quick and powerful plug-and-play solution for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later).
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space by mounting your docking station out of the way. Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
