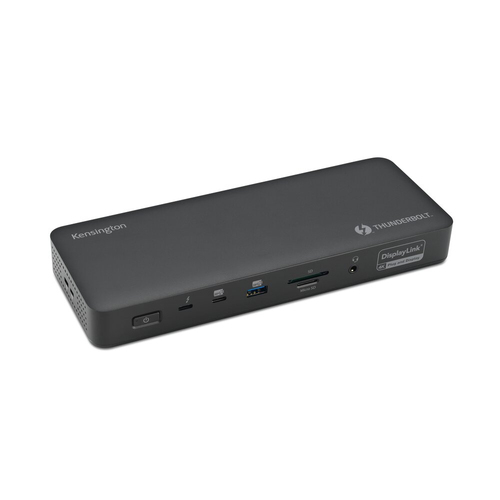

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink® Technology
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),SD |
| Data transfer rate | 40 |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 4 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington,Nano |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Housing material | Aluminium,Plastic |
| Country of origin | Vietnam |
| Power | |
| Power source type | DC |
| AC input voltage | 100 - 240 |
| Input current | 2.5 |
| Output voltage | 21 |
| Output current | 7.1 |
| Software | |
| Windows operating systems supported | Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64 |
| Mac operating systems supported | Mac OS X 14.0 Sonoma,Mac OS X 15.0 Sequoia |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -18 - 60 |
| Operating relative humidity (H-H) | 0 - 55 |
| Weight & dimensions | |
| Width | 2250 |
| Depth | 85 |
| Height | 22 |
| Weight | 600 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 242 |
| Package depth | 108 |
| Package height | 100 |
| Package weight | 1190 |
| Packaging content | |
| Cables included | AC,Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CB,CE,Federal Communications Commission (FCC),RCM,RoHS,UKCA |
| Logistics data | |
| Products per shipping (inner) case | 6 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Quad 4K Video Output
Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. Provides flexible video connections (HDMI®, DP and TB4) without the need for cumbersome adapters. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
Universal Compatibility
A quick and powerful solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).
Recycled Materials
The SD5920T is composed of 100% post-consumer recycled (PCR) aluminium* and is delivered in Forest Stewardship Council (FSC®) certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
Thunderbolt™ 4 Hybrid Technology
Transfers up to 40Gbps of data, video , and audio. Provides daisy chain support for SSDs, monitors , and other Thunderbolt™ devices. Blocks peripheral devices from unauthorised access to system memory using Intel VT-d DMA protection.
Up to 100W Charging (96W certified)
Charges any Thunderbolt™ 4, Thunderbolt™ 3, USB4® or USB-C® laptop, while also providing power to any connected USB-C® or USB4® accessories, including phones, tablets and watches. Includes KonstantCharge™, enabling connected devices to charge even when your host device is undocked.
Productive 16-in-1 Design
16 ports deliver expanded connectivity options. Includes 1 x Thunderbolt™ host port and 2 x Thunderbolt™ 4 downstream ports capable of data, video and audio, 1 x USB-C® 3.2 Gen2 10Gbps, 1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps, 2 x HDMI®/DP, 1 x DP, 1 x 3.5mm combo audio jack, 1 x SD Card reader, 1 x Micro SD Card reader and 1 x 2.5Gbps Ethernet.
Security Cable Lock Slots
Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.
