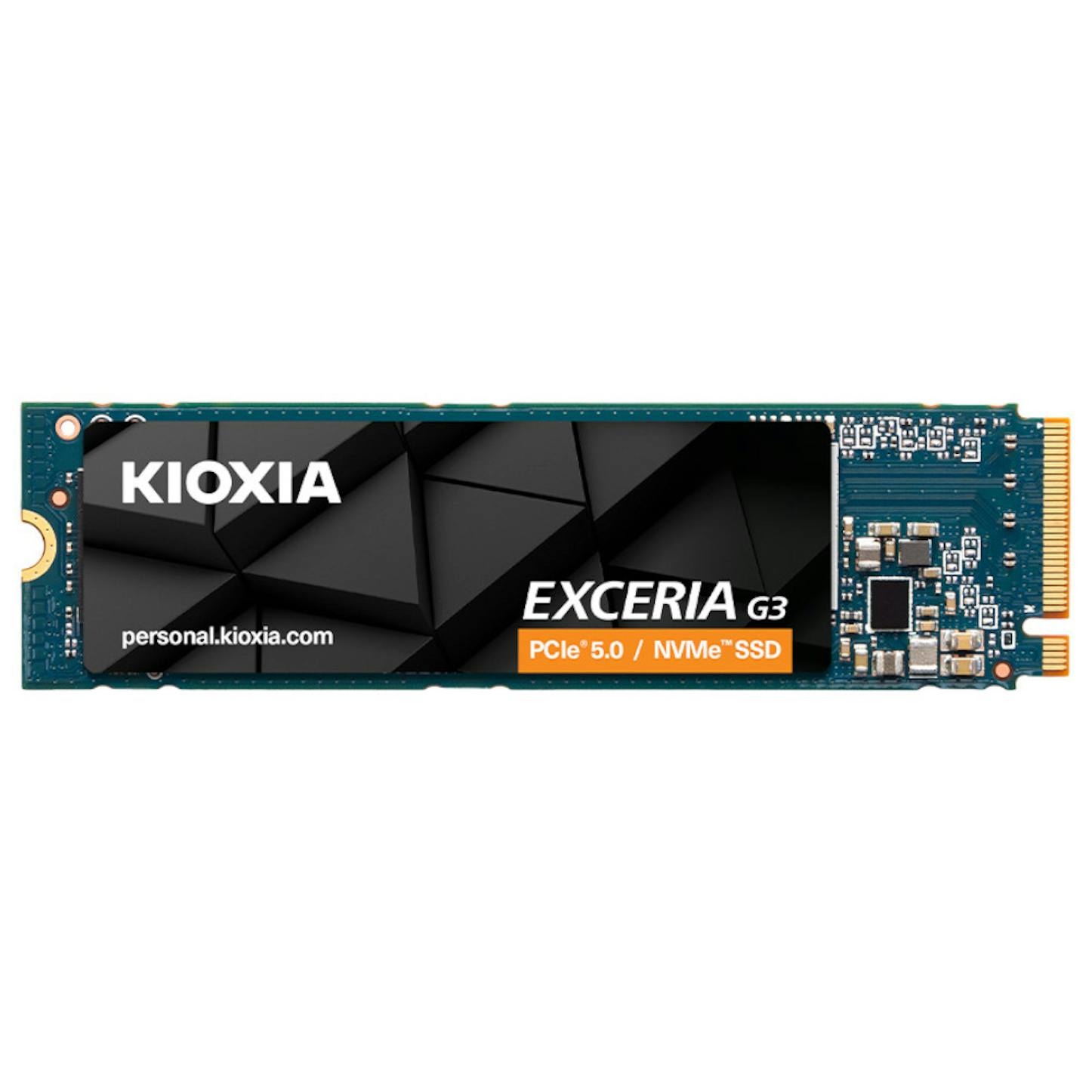

Kioxia EXCERIA G3 1TB SSD NVME M.2 2280 PCIe 5.0 Solid State Drive
Capacity: 2 GB
Product Technical Specification
| Features | |
| NVMe version | 2.0 |
| SSD capacity | 2 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | BiCS FLASH TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 10000 MB/s |
| Write speed | 8900 MB/s |
| Random read (4KB) | 1300000 IOPS |
| Random write (4KB) | 1450000 IOPS |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 600 |
| SSD usage tag | Consumer |
| Power | |
| Operating voltage | 3.3 V |
| Power consumption (max) | 5.5 W |
| Weight & dimensions | |
| Width | 22.1 mm |
| Depth | 80.2 mm |
| Height | 2.38 mm |
| Weight | 5.7 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -40 - 50 °C |
| Operating vibration | 20 G |
| Operating shock | 1000 G |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
First Step into PCIe® 5.0 Performance
Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10 000 MB/s for sequential reads and 9 600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe® 5.0 performance.
Advanced Heat Dissipation
EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.
NVMe™ Technology
Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
Specification:
- Capacity: 1TB
- Form Factor: M.2 Type 2280-S3-M
- Interface: PCI Express® Base Specification Revision 5.0 (PCIe®)
- Flash Memory type: BiCS FLASH™ QLC
- Interface Maximum Speed: 128 GT/s (PCIe® Gen5x4)
- Dimension (Max: LxWxH): 80.15 x 22.15 x 2.38 mm
- Interface Protocol: NVM Express™ Base Specification 2.0c
- Weight: 5.7 g (typ.)
- Max Sequential Read Speed: 10,000 MB/s
- Max Sequential Write Speed: 8,900 MB/s
- Max Random Read Speed: 1,300,000 IOPS
- Max Random Write Speed: 1,450,000 IOPS
- Endurance: : 600 TB
- MTTF: 1.5 million hours
- Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
- Storage Temperature: -40 ℃ to 85 ℃
- Certification: RoHS compliant
- Shock Resistance: 9.806 km/s {1,000 G} 0.5 ms half sine wave
- Vibration: 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
- Supply Voltage: 3.3 V ±5 %
- Power Consumption (Active): 1TB: 5.5 W (typ.)
