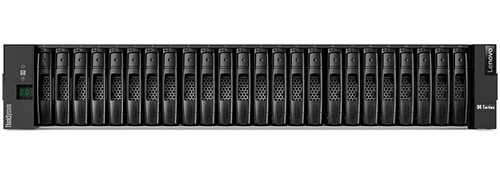

Lenovo ThinkSystem DE4000H disk array Rack (2U) Black
Product Technical Specification
Storage | |
Storage drives installed | No |
Installed storage drive type | No |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 24 |
RAID levels | 0,1,3,5,6,10 |
Hot-swap drive bays | Yes |
Ports & interfaces | |
USB connectivity | Yes |
Serial interface type | RJ-45 |
RJ-45 ports quantity | 3 |
Design | |
Chassis type | Rack (2U) |
Product colour | Black |
LED indicators | Yes |
Cooling | Yes |
Built-in display | Yes |
Performance | |
Device class | Small & Medium Business |
Cache size (max) | 64 |
Power | |
Power supply unit (PSU) capacity | 913 |
Number of power supply units | 2 |
Redundant power supply (RPS) support | Yes |
AC input voltage | 100 - 240 |
AC input frequency | 50 - 60 |
System requirements | |
Server operating systems supported | Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
Weight & dimensions | |
Width | 449 |
Depth | 553 |
Height | 85 |
Weight | 27600 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Storage | |
Storage drives installed | No |
Installed storage drive type | No |
Supported storage drive types | HDD & SSD |
Number of storage drives supported | 24 |
RAID levels | 0,1,3,5,6,10 |
Hot-swap drive bays | Yes |
Ports & interfaces | |
USB connectivity | Yes |
Serial interface type | RJ-45 |
RJ-45 ports quantity | 3 |
Design | |
Chassis type | Rack (2U) |
Product colour | Black |
LED indicators | Yes |
Cooling | Yes |
Built-in display | Yes |
Performance | |
Device class | Small & Medium Business |
Cache size (max) | 64 |
Power | |
Power supply unit (PSU) capacity | 913 |
Number of power supply units | 2 |
Redundant power supply (RPS) support | Yes |
AC input voltage | 100 - 240 |
AC input frequency | 50 - 60 |
System requirements | |
Server operating systems supported | Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
Weight & dimensions | |
Width | 449 |
Depth | 553 |
Height | 85 |
Weight | 27600 |
