Lian Li SX Platinum 1000W Modular Power Supply - Black
Product Technical Specification
| Dimensions | |
| Length / Depth | 140 mm |
| Width | 150 mm |
| Height | 86 mm |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Power Specifications | |
| Total Power Output | 1000 W |
| Power Output +3.3V & +5V (combined) | 100 W |
| Power Output +12V rails | 999.6 W |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | OVP (Overvoltage and Undervoltage Protection), UVP (Undervoltage Protection), SCP (Short-Circuit Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OCP (Overcurrent Protection) |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 2x 4+4-Pin |
| 12V-2x6 Power Connectors | 1 |
| 8 Pin PCIe Power Connectors | 3 |
| SATA Power Connectors | 8 |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 600 mm |
| Max. 12V-2x6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 550 mm |
| Max. SATA Power Cable Length | 850 mm |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The Lian Li SX Series 1000W PSU is a fantastic choice for enthusiasts looking to build their dream gaming PC. With up to 1000W power delivery, the SX Series can easily facilitate a high-end CPU, a modern GPU, multiple storage drives, and a comprehensive cooling system. No matter what hardware you opt for, your PC will be highly efficient, as this PSU can convert up to 92% of the AC power from your mains supply into useful DC energy for your computer at half load. As such, the SX Series PSUs have earned an 80 PLUS Platinum rating. An added benefit, these power supplies are easy to maintain at optimal temperatures using a 120mm FDB fan. When under a light load, the Lian Li SX Series 1000W PSU can even enter Zero RPM mode, where the fan stops spinning for silent operation. Furthermore, with a modular design, this power supply is perfect for building a super-clean PC, as you only need to plug in the cables you require.
Lian Li SX Series Power Supplies at a Glance:
- High-capacity power delivery of up to 1000W
- 80 PLUS Platinum rating - 92% efficient at half load
- Fully-modular design with a full set of braided cables included
- Complies with the ATX 3.1 and PCIe 5.1 standards
- 120mm FDB fan for enhanced cooling with a Zero RPM mode for silent operation
- Covered by a 10-year warranty
Who is the Lian Li SX Series Power Supplies Perfect For?
- Enthusiasts looking to build a powerful gaming PC or workstation
- People that like to work in a quiet environment
- Gamers that want a clutter-free aesthetic

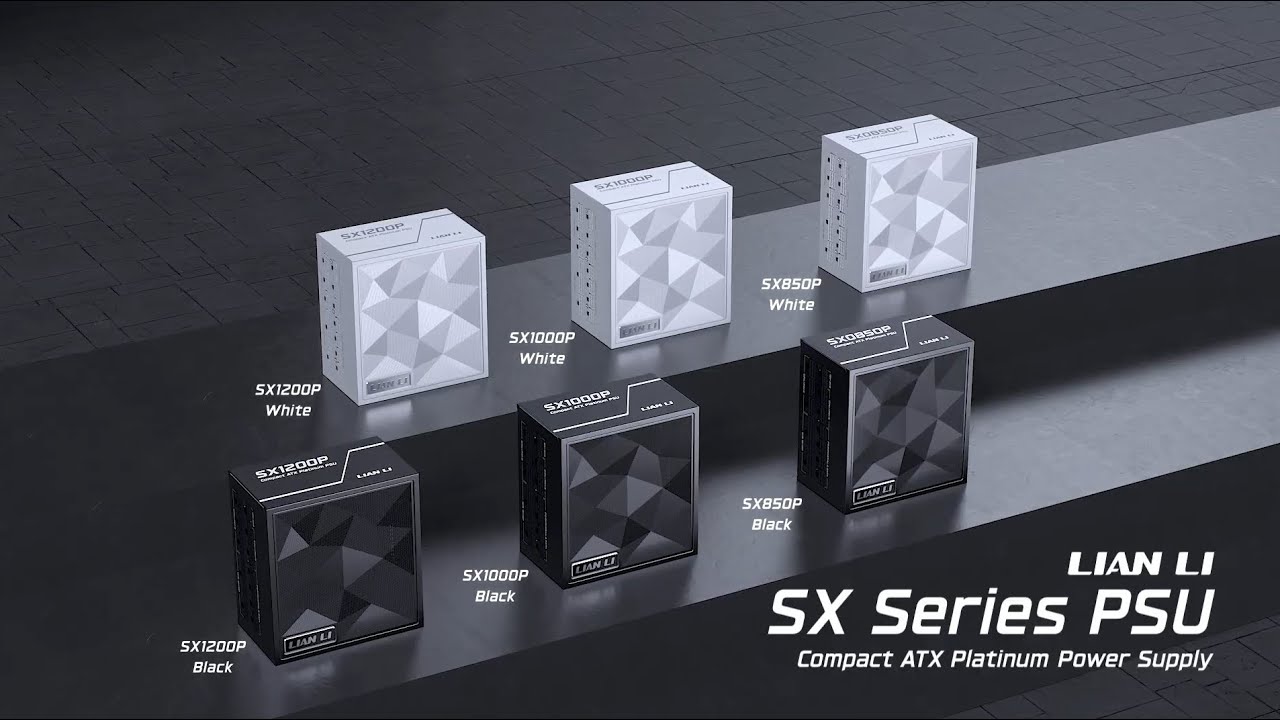

LIAN LI - SX PLATINUM PSU SERIES OFFICIAL PRODUCT VIDEO
In order to watch this youtube video you have to consent to the usage of marketing cookies. Please update your cookie consent.
Exceptional Power Delivery for High-End Hardware
The Lian Li SX Series 1000W PSU is a high-end power supply, designed to support the latest premium components. With 1000W power delivery, this PSU can easily facilitate the latest AMD and Intel processors alongside high-performance GPUs, like the NVIDIA GeForce RTX 5090. What’s more, this PSU is well-equipped to handle future components, as it is fully compliant with the ATX 3.1 and PCIe 5.1 standards. As such, there is native support for 12V-2x6 power cables, letting you power your prized GPU using a single cable.
Incredible Efficiency for Minimal Cooling
Built using premium components, including Japanese 105°C capacitors, the Lian Li SX Series 1000W PSU boasts incredible energy efficiency. In fact, this power supply can convert 92% of the electricity it draws from your wall outlet into DC power for your computer at half load. With this amazing performance, these PSUs have received an 80 PLUS Platinum rating.
Thanks to their efficiency, an SX Series PSU is easy to maintain at optimum temperatures. When under a heavy load, the 120mm fan will spin at speeds of up to 2000RPM, delivering plenty of fresh air to keep the power supply cool. There is also a Zero RPM mode, where the fan stops spinning should the total load on the PSU drop to under 40%.
Modular Design for Clean Builds
With a modular design, the Lian Li SX Series Power is perfect for building a gaming PC with a clean aesthetic. Thanks to the modular backplate, you need only plug in the cables you require, keeping clutter to a minimum. Furthermore, the Lian Li SX Series Power comes with a full set of braided cables. These wires are much more pliable, making them easier to route through your case. This includes the custom 12V-2x6 cable, which features an in-house moulded 12+4 connector that utilises a dual-colour design, to indicate when the cable is fully seated.
Long-Term Safety and Reliability
The Lian Li SX Series 1000W PSU is equipped with a suite of protection mechanisms, designed to keep both your power supply and PC safe from damage. Some of these include Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), and No Load Protection (NLP). These systems work in conjunction with one another to protect your computer against any dangers, for outstanding longevity. In fact, Lian Li is so confident in the durability of these power supplies that they offer an incredible 10-year warranty with each SX Series PSU.
