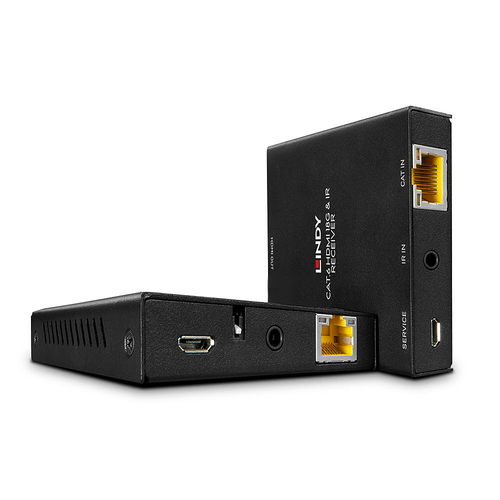

Lindy 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out
Product Technical Specification
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance | 50 |
| Chipset | SIL9396, SIL9630 |
| Maximum refresh rate | 60 |
| Extended display identification data (EDID) | Yes |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| Bandwidth | 18 |
| HDCP | Yes |
| Material | Metal |
| Product colour | Black |
| Certification | CE, FCC, REACH & California Proposition 65 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| USB ports quantity | 2 |
| USB connector type | Micro-USB |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage | 24 |
| Input current | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 90 |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 70 x 15 x 97 |
| Receiver weight | 151 |
| Transmitter dimensions (WxDxH) | 70 x 15 x 97 |
| Transmitter weight | 156 |
| Packaging data | |
| Package width | 220 |
| Package depth | 70 |
| Package height | 130 |
| Package weight | 605 |
| Package type | Box |
| Packaging content | |
| Cables included | IR |
| Manual | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Business Express
The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows. The built in EDID dip switch enables the user to control which EDID is taken from either display, making installation and configuration simple ensuring maximum compatibility with HDMI displays and projectors. PoC allows both power and data signals over a Cat.6 cable in a point to point configuration, adding flexibility as only one power supply is required for both the transmitter and receiver units. Ideal when power outlets are limited.
Featuring IR Pass-through, the source equipment can be seamlessly controlled from the remote displays side of the installation using compatible infrared remote controls. This provides simple and complete control for the user.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
