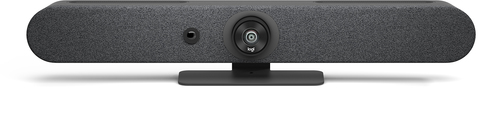

Logitech Rally Bar Mini
Product Technical Specification
| Performance | |
| Product colour | Graphite |
| Pan range | -25 - 25 |
| Tilt angle range | -15 - 15 |
| PTZ control | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Supported video modes | 576p,720p,900p,1440p,2160p |
| Maximum frame rate | 30 |
| Audio | |
| Built-in speaker(s) | Yes |
| Output level | 92/99 |
| Line-out impedance | 4 |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Audio beamforming | Yes |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| RMS rated power | 5 |
| Microphone pick-up range | 4.5 |
| Sample rates | 0 - 48 |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-A,USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Interface module | |
| Interface module RJ-45 ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
| Zoom capability | Yes |
| Digital zoom | 4 |
| Horizontal field of view | 113 |
| Vertical field of view | 80.7 |
| Diagonal field of view | 120 |
| Remote control interface | Bluetooth |
| Display | |
| Display | IPS |
| Display diagonal | 10.1 |
| Display resolution | 1280 x 800 |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Viewing angle, horizontal | 85 |
| Viewing angle, vertical | 85 |
| Display brightness | 400 |
| Oleophobic coating | Yes |
| Microphone | |
| Microphone sensitivity | -36 |
| Microphone frequency | 90 - 16000 |
| Microphone direction type | Omnidirectional microphone |
| Sound pressure level (max) | 90 |
| Number of microphones | 6 |
| Features | |
| Telepresence | No |
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Logistics data | |
| Master (outer) case gross weight | 8870 |
| Master (outer) case length | 808 |
| Master (outer) case width | 258 |
| Master (outer) case height | 302 |
| Harmonized System (HS) code | 85176990 |
| Battery | |
| Battery capacity | 0.675 |
| Computer system | |
| Windows operating systems supported | Windows 10,Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Heat dissipation | 64 |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| Current | 4.754 |
| DC input voltage | 19 |
| Battery technology | Lithium |
| Battery capacity | 220 |
| Number of batteries supported | 2 |
| Power plug type | Type G |
| Weight & dimensions | |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 |
| Interface module weight | 1000 |
| Width | 719 |
| Depth | 101 |
| Height | 91.4 |
| Weight | 4030 |
| Package width | 252 |
| Package depth | 802 |
| Package height | 289 |
| Package weight | 8869 |
| Packaging content | |
| Cables included | AC,DC,HDMI,USB Type-A to USB Type-C |
| Power cable length | 2.5 |
| HDMI cable length | 2 |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Remote control included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
