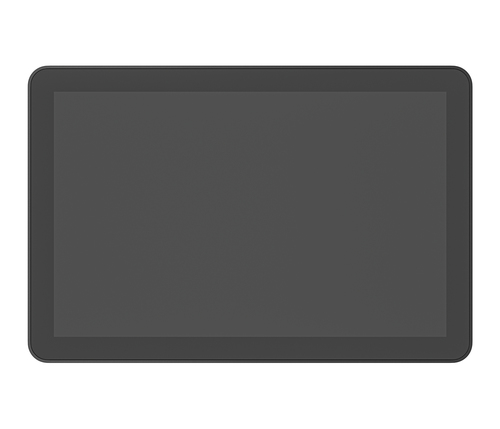

Logitech Tap Scheduler in Graphite
Product Technical Specification
| Display | |
| Display diagonal | 10.1 |
| Display resolution | 1280 x 800 |
| Display technology | IPS |
| LED backlight | Yes |
| Viewing angle | 85 |
| Display brightness | 400 |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Design | |
| Housing colour | Graphite |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 |
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Oleophobic coating | Yes |
| LED indicators | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 |
| Security algorithms | 128-bit AES |
| Networking standards | IEEE 802.3af |
| Power | |
| Power source type | AC,PoE |
| Weight & dimensions | |
| Width | 246.2 |
| Depth | 28.5 |
| Height | 165 |
| Weight | 700 |
| Packaging data | |
| Package width | 247 |
| Package depth | 346 |
| Package height | 93 |
| Package weight | 2170 |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Mounting bracket(s) included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Logistics data | |
| Master (outer) case gross weight | 4660 |
| Master (outer) case length | 358 |
| Master (outer) case height | 199 |
| Master (outer) case width | 260 |
Delivery Options
Economy Delivery (UK)
Business Express
Purpose-built scheduling panel for meeting rooms
RIGHT PLACE, RIGHT TIME
Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.
GREEN MEANS GO
Quickly find an open room through colored LED lights that show availability at a distance.
CLEAN AND EASY INSTALL
Included mounts and clean cabling help ensure a tidy and professional setup.
Glass Mounting
Secure Tap Scheduler while maintaining a clean look on both sides of the glass.
Mullion Mounting
Secure Tap Scheduler to a door or window frame for greater visibility using the included mount.
Wall Mounting
Place and secure Tap Scheduler anywhere on a wall.
Cable Management
Hide cables in the wall, mullion, or in other directions, with multiple routing options.
PURPOSE-BUILT AS A SCHEDULING PANEL
Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.
MAKE THE MOST OF YOUR SPACE
Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.
PICK YOUR PLATFORM
Enable a seamless meeting experience through Tap Scheduler and Logitech’s suite of room solutions, which integrate with Microsoft Teams®, Zoom Rooms™, and other service providers to raise the bar on collaboration.
SIMPLE TO MANAGE WITH LOGITECH SYNC
With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.
UP TO THREE YEAR WARRANTY
Ensure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.
