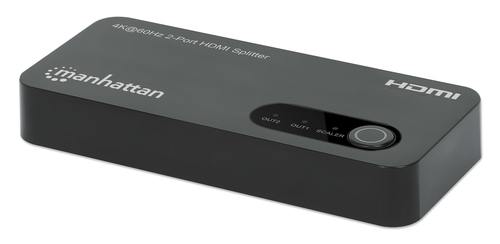

Manhattan 4K@60Hz 2-Port HDMI Splitter Splits One HDMI Input to Two HDMI Outputs (1x2), 18G, Micro-USB input for power, EDID Switch for Downscaling to 1080p, Black, 3 year warranty

Manufacturer: MANHATTAN | Model: 207614 | Product ID: 8770 | Warranty: 3 year
£36.26 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Ports & interfaces
Video port typeHDMI
Video out2x HDMI
HDMI version2.0
Video ports quantity2
DC-in jackYes
Features
Product colourBlack
Housing materialPlastic
Maximum resolution3840 x 2160
HD type4K Ultra HD
Maximum refresh rate60
Bandwidth600
HDCP version2.3
Extended display identification data (EDID)Yes
Cable length0.8
Data transfer rate18
HDCPYes
Supported video modes480p,576i,720p,1080i,1080p,2160p
LED indicatorsYes
Number of displays supported2
Power
Power consumption (max)5
Weight & dimensions
Width45
Depth102
Height15
Weight47
Packaging data
Quantity per pack1
Package width92
Package depth125
Package height17
Package weight185
Package typeBox
Packaging content
ManualYes
Cables includedUSB Type-A to Micro USB-B
Packaging content
Operational conditions
Operating temperature (T-T)0 - 70
Storage temperature (T-T)-20 - 80
Operating relative humidity (H-H)5 - 90
Sustainability
Sustainability complianceYes
Sustainability certificatesCE,Federal Communications Commission (FCC),REACH,RoHS,UKCA
Technical details
Maximum cable length5
Compliance certificatesCE,Federal Communications Commission (FCC),REACH,RoHS,UKCA
Logistics data
Master (outer) case width270
Master (outer) case length395
Master (outer) case height210
Master (outer) case gross weight7500
Products per master (outer) case80

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
4K 2-Port HDMI Splitter - Easily split a single HDMI audio/video signal across two HDMI displays in 4K60 UHD and HDR
The compact Manhattan 4K@60Hz 2-Port HDMI Splitter duplicates a signal from a single HDMI source to dual displays without distorting or degrading your video.

Flexible solution with downscaling from 4K to 1080p for many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, this 1x2 Splitter is a great choice for splitting and distributing a synchronous signal to two displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. A smart EDID management switch on the unit can downscale a 4K input signal to Full HD (or lower), making installations with older displays hassle-free.

Easy installation and wide compatibility
Full compliance with HDMI 2.0 and HDCP 2.3 ensures that this 2-way Splitter can provide reliable performance. Quickly connect HDMI cables (not included) and the Micro-USB power cable to complete this affordable Ultra-High-Definition, 4K HDMI solution - no software/hardware configuration or complicated settings required. Full backward compatibility with 4K@30Hz and 1080p displays ensures that it will work with any HDMI source or destination device. This 4K Splitter is perfect for digital signage applications, where equipment may vary throughout your site.

High-quality video
With transmission bandwidth up to 18 Gbps, this HDMI Splitter supports UHD resolutions up to 3840x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. Additional support for High-Dynamic Range (HDR) ensures that video content can be seen with enhanced brightness and superior contrasts.
Ports & interfaces
Video port typeHDMI
Video out2x HDMI
HDMI version2.0
Video ports quantity2
DC-in jackYes
Features
Product colourBlack
Housing materialPlastic
Maximum resolution3840 x 2160
HD type4K Ultra HD
Maximum refresh rate60
Bandwidth600
HDCP version2.3
Extended display identification data (EDID)Yes
Cable length0.8
Data transfer rate18
HDCPYes
Supported video modes480p,576i,720p,1080i,1080p,2160p
LED indicatorsYes
Number of displays supported2
Power
Power consumption (max)5
Weight & dimensions
Width45
Depth102
Height15
Weight47
Packaging data
Quantity per pack1
Package width92
Package depth125
Package height17
Package weight185
Package typeBox
Packaging content
ManualYes
Cables includedUSB Type-A to Micro USB-B
Packaging content
Operational conditions
Operating temperature (T-T)0 - 70
Storage temperature (T-T)-20 - 80
Operating relative humidity (H-H)5 - 90
Sustainability
Sustainability complianceYes
Sustainability certificatesCE,Federal Communications Commission (FCC),REACH,RoHS,UKCA
Technical details
Maximum cable length5
Compliance certificatesCE,Federal Communications Commission (FCC),REACH,RoHS,UKCA
Logistics data
Master (outer) case width270
Master (outer) case length395
Master (outer) case height210
Master (outer) case gross weight7500
Products per master (outer) case80
