Matrox M9120-E512LAU1F graphics card GDDR2
Product Technical Specification
| Processor | |
| Maximum resolution | 2048 x 1536 |
| Maximum analog resolution | 2 x 2048 |
| Maximum digital resolution | 2 x 1920 |
| Memory | |
| Graphics card memory type | GDDR2 |
| Memory bus | 128 |
| Ports & interfaces | |
| Interface type | PCI Express x1 |
| Dual VGA | Yes |
| TV-out | No |
| DVI-I ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| DVI ports quantity | 2 |
| Performance | |
| DirectX version | No |
| OpenGL version | 2.0 |
| Dual Link DVI | Yes |
| Design | |
| Cooling type | Passive |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Certification | EMC Certifications: Class B |
| Weight & dimensions | |
| Depth | 19 |
| Height | 69 |
| Width | 168 |
| Packaging content | |
| Bundled software | Matrox display drivers for Microsoft Windows Vista and XP (also available via download at www.matrox.com/graphics) Matrox PowerDesk desktop management software |
| Other features | |
| Mac compatibility | No |
| Compatible operating systems | Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit), Linux see Website for details |
| Number of processors installed | 1 |
| Cable length | 0.3 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
Delivery Options
Economy Delivery (UK)
Business Express

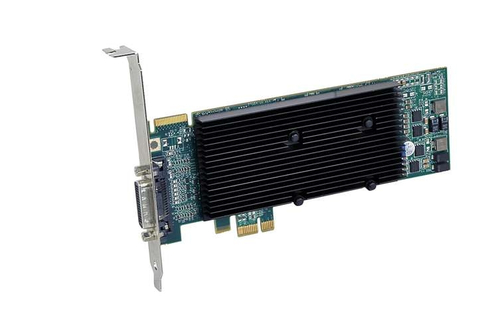

The Matrox M9120 Plus LP PCIe x1 low-profile, dual monitor graphics card renders pristine image quality on either two displays (natively) at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.
* High-resolution dual monitor support
Up to 1920 x 1200 digital; 2048 x 1536 analog per output
* Universal PCI express
PCIe x1 format allows card to work in any PCIe slot (e.g. PCIe x16, x8, x4, or x1)
* Upgrade option to four monitors
Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
* 512 MB of memory
For enhanced performance in demanding multi-monitor applications
* Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form factor.
* Optimal support for Windows® Vista
Aero (WDDM mode), XP, among other OS platforms
* Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
* Joined graphics card mode
Allows for an additional Matrox M-Series graphics card, to increase total monitor support
* Wide enterprise flexibility
Unified driver package compatible with other Matrox products
* Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Hardware Included
* Matrox M9120 Plus LP PCIe x1 graphics card (with factory-installed ATX bracket)
* LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft)
* Two DVI-I-to-HD15 connector adapters
Software Included
* Matrox display drivers for Microsoft Windows Vista and XP
(also available via download at www.matrox.com/graphics)
* Matrox PowerDesk desktop management software
