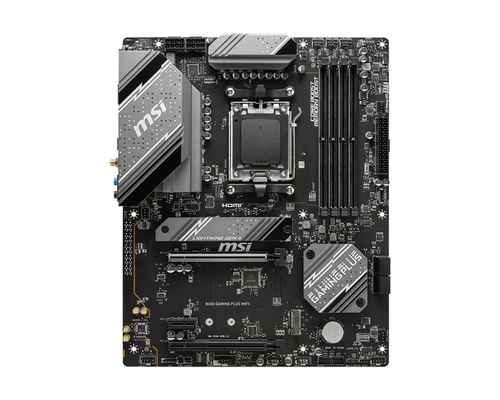

MSI B650 GAMING PLUS WIFI motherboard AMD B650 Socket AM5 ATX

Manufacturer: MSI | Model: B650 GAMING PLUS WIFI | Product ID: 8765
£163.20 (inc. VAT)
858 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7 7th Gen,AMD Ryzen 9 7th Gen
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400
Supported memory clock speed (max)6000
Maximum internal memory192
Storage controllers
Supported storage drive interfacesM.2,SATA
RAID levels0,1,10
Graphics
Parallel processing technology supportNot supported
Internal I/O
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetAMD B650
Audio chipRealtek ALC897
Audio output channels7.1
PC health monitoringFAN
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version6.4
Weight & dimensions
Width243.84
Depth304.8

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Mon 26th May 2025 to Thu 29th May 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sun 25th May 2025 to Tue 27th May 2025
View all Delivery Options & International Rates
B650 GAMING PLUS WIFI
B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.


Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7 7th Gen,AMD Ryzen 9 7th Gen
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400
Supported memory clock speed (max)6000
Maximum internal memory192
Storage controllers
Supported storage drive interfacesM.2,SATA
RAID levels0,1,10
Graphics
Parallel processing technology supportNot supported
Internal I/O
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125B
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetAMD B650
Audio chipRealtek ALC897
Audio output channels7.1
PC health monitoringFAN
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Windows operating systems supportedWindows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size256
ACPI version6.4
Weight & dimensions
Width243.84
Depth304.8
