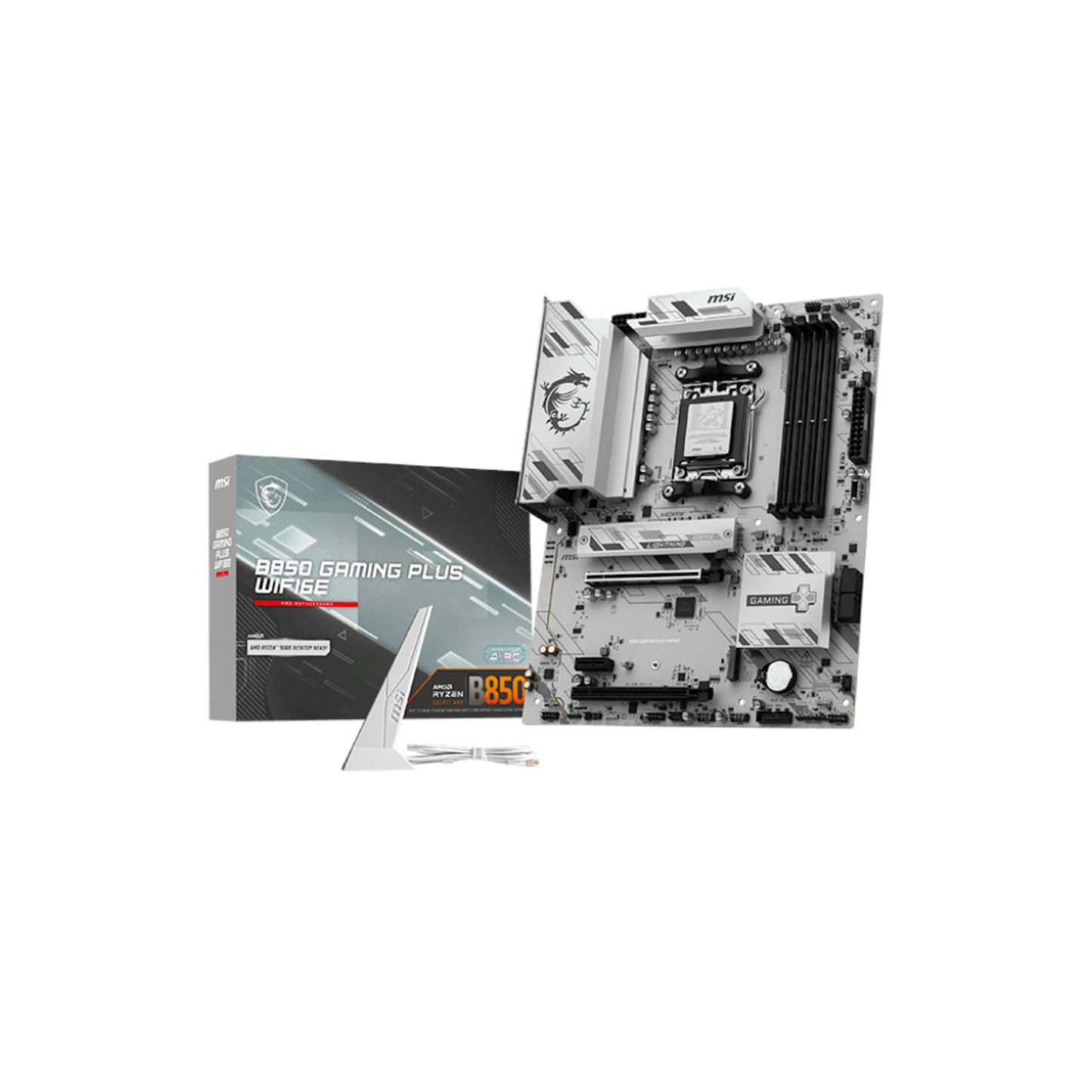

MSI B850 Gaming Plus WIFI6E (AMD AM5) B850 DDR5 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | White |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD B850 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 6 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 2x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Motherboard Specifications | |
|---|---|
| Chipset | AMD B850 |
| CPU |
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5 UDIMM, Max 256GB DDR5 8200 - 5600 (OC) / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Max OC: • 1DPC 1R: 8200+ MT/s • 1DPC 2R: 6400+ MT/s • 2DPC 1R: 6400+ MT/s • 2DPC 2R: 6000+ MT/s Supports AMD EXPO™, Dual-Channel, Non-ECC, Un-buffered, CUDIMM (Clock Driver bypass only) * CUDIMM and POR frequency may vary by CPU. BIOS updates may improve compatibility. |
| Onboard Graphics |
1x HDMI™ 2.1 (4K@60Hz) 1x DisplayPort 1.4 (4K@60Hz) *Available only on CPUs with integrated graphics |
| Expansion Slots |
2x PCI-E x16 Slots: • PCI_E1: PCIe 4.0 x16 (9000/7000), x8 (8700/8600/8400), x4 (8500/8300) 1x PCI-E x1 Slot (PCIe 3.0 from Chipset) PCI_E3: PCIe 4.0 x4 (from Chipset) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Storage |
2x M.2 Slots: • M.2_1 (CPU): PCIe 5.0 x4 (9000/7000), PCIe 4.0 x4 (8000), supports 22110/2280 • M.2_2 (CPU): PCIe 4.0 x4 (9000–7000), PCIe 4.0 x2 (8500/8300), supports 2280/2260 4x SATA 6Gb/s *Check manual for M.2 heatsink restrictions |
| RAID |
SATA: RAID 0, 1, 10 M.2 NVMe: RAID 0, 1 |
| USB Ports |
Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Realtek® 8125D 2.5G LAN |
| Wireless & Bluetooth |
Wi-Fi 6E (Pre-installed in M.2 Key-E) • MU-MIMO TX/RX • 2.4 / 5 / 6GHz (160MHz), up to 2.4Gbps • 802.11 a/b/g/n/ac/ax • Bluetooth® 5.3 (Win11 / Win10 21H1), FIPS, FISMA |
| Internal I/O |
1x ATX_PWR, 2x CPU_PWR 1x CPU Fan, 1x Pump/Sys Fan, 4x System Fan 2x Front Panel (JFP), 1x JAUD, 1x JCI, 1x JCOM, 1x JDASH, 1x JAF_1 3x JARGB_V2, 1x JRGB 1x TPM Header (TPM 2.0) USB: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LED Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Back Panel Ports |
Clear CMOS Button DisplayPort 1.4, HDMI™ 2.5G LAN, Wi-Fi / Bluetooth Flash BIOS Button USB: 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A HD Audio Connectors |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX (243.84mm x 304.8mm) |
