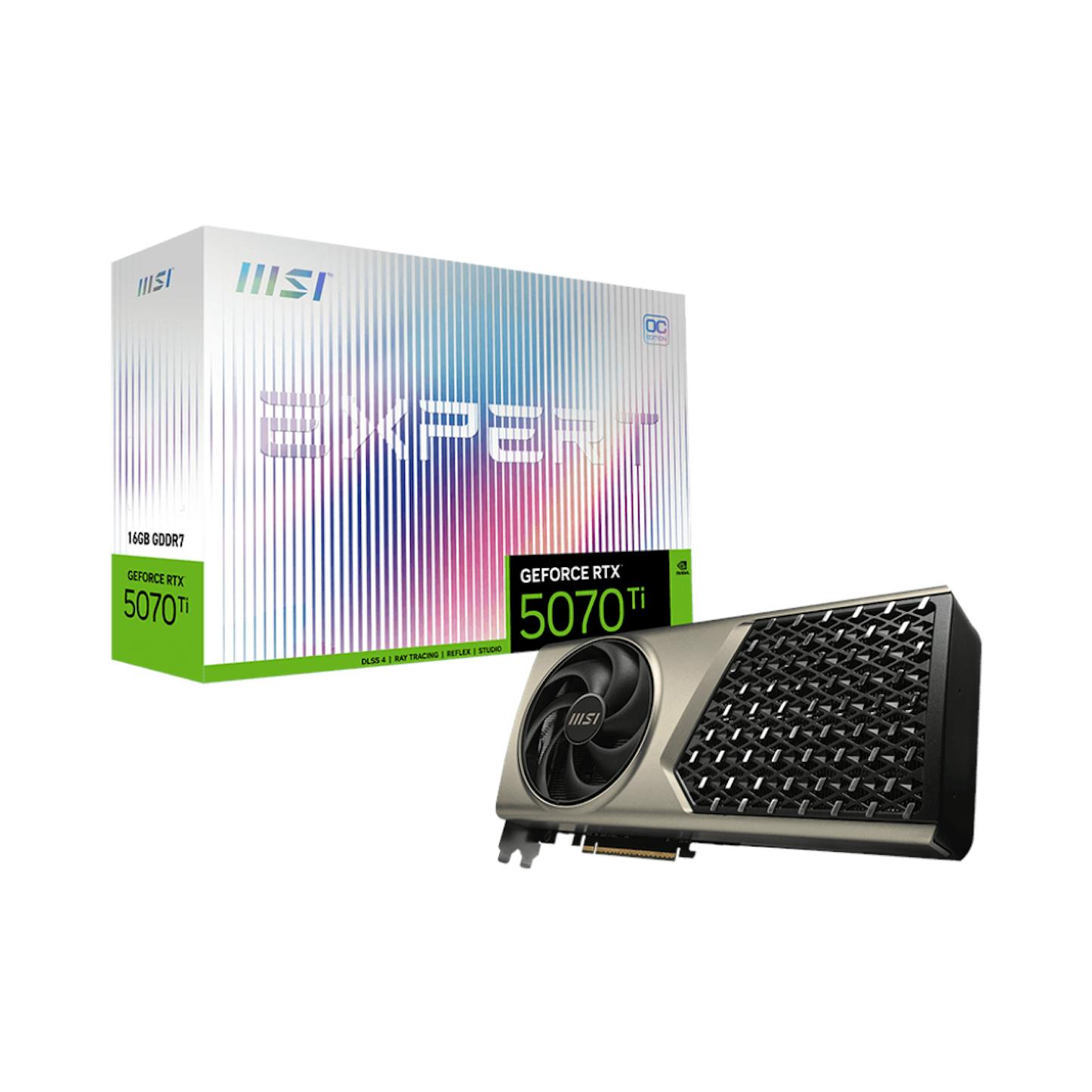

MSI GeForce RTX 5070 Ti Expert OC 16GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Dimensions | |
| Length / Depth | 319 mm |
| Width | 150 mm |
| Height | 60 mm |
| Colour | |
| Primary Colour | Bronze |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Cooling | |
| Number of GPU Fans | 2 |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Expansion Slots | |
| Expansion Slots Required | 3 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2295 MHz |
| Max. GPU Clock (Boost) | 2588 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5070 Ti |
| Graphics Chip | GB203-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 8960 |
| Tensor Cores | 280 |
| Raytracing Cores / Ray Acceleratorss | 70 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 896 |
| GPU Effective Memory Clock (MHz) | 2209 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
- Core Clocks:
Extreme Performance: 2588 MHz (MSI Center)
Boost: 2580 MHz - Flow Frozr 2: Designed for silence and performance, MSI’s FLOW FROZR 2 delivers exceptional cooling to keep your graphics card performing at its best.
- Push Pull Airflow: Cooling efficiency is improved with two fans working collaboratively to reduce heat buildup.
- Aluminum Die-Casting: Enhances overall structural integrity with metal material while the flow-through ventilation reduces trapped heat.
- Zero Frozr: The fans completely stop when temperatures are low, eliminating all noise during light workloads.
- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc design provide optimal airflow with minimal noise.
- Advanced Vapor Chamber: Built-in vapor chamber swiftly transfers heat from the GPU and VRAM to the core pipe for superior dissipation.
- Optimized Heat Distribution – Core Pipe: Square-shaped core pipes maximize heat dissipation when paired with the vapor chamber.
- Optimized Fin Design: Precisely engineered fins maximize cooling efficiency and maintain sustained peak performance.
- MSI Center: The exclusive MSI software lets you monitor, tweak, and optimize MSI products in real-time.
- Afterburner: Take full control with the world’s most recognized and widely used graphics card overclocking software.
| Marketing Name | GeForce RTX™ 5070 Ti 16G EXPERT OC |
|---|---|
| Model Name | G507T-16EC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti |
| Interface | PCI Express® Gen 5 x16 |
| Core Clocks |
Extreme Performance: 2588 MHz (MSI Center) Boost: 2580 MHz |
| CUDA® Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output |
DisplayPort x3 (v2.1b) HDMI™ x1 (Supports 4K@480Hz HDR, 8K@120Hz HDR, and Variable Refresh Rate as per HDMI™ 2.1b) |
| HDCP Support | Yes |
| Power Consumption | 300W |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 750W |
| Card Dimension (mm) | 319 × 150 × 60 mm |
| Weight (Card / Package) | 1875 g / 2745 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 × 4320 |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Dimensions | |
| Length / Depth | 319 mm |
| Width | 150 mm |
| Height | 60 mm |
| Colour | |
| Primary Colour | Bronze |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Cooling | |
| Number of GPU Fans | 2 |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Expansion Slots | |
| Expansion Slots Required | 3 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2295 MHz |
| Max. GPU Clock (Boost) | 2588 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5070 Ti |
| Graphics Chip | GB203-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 8960 |
| Tensor Cores | 280 |
| Raytracing Cores / Ray Acceleratorss | 70 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 896 |
| GPU Effective Memory Clock (MHz) | 2209 |
