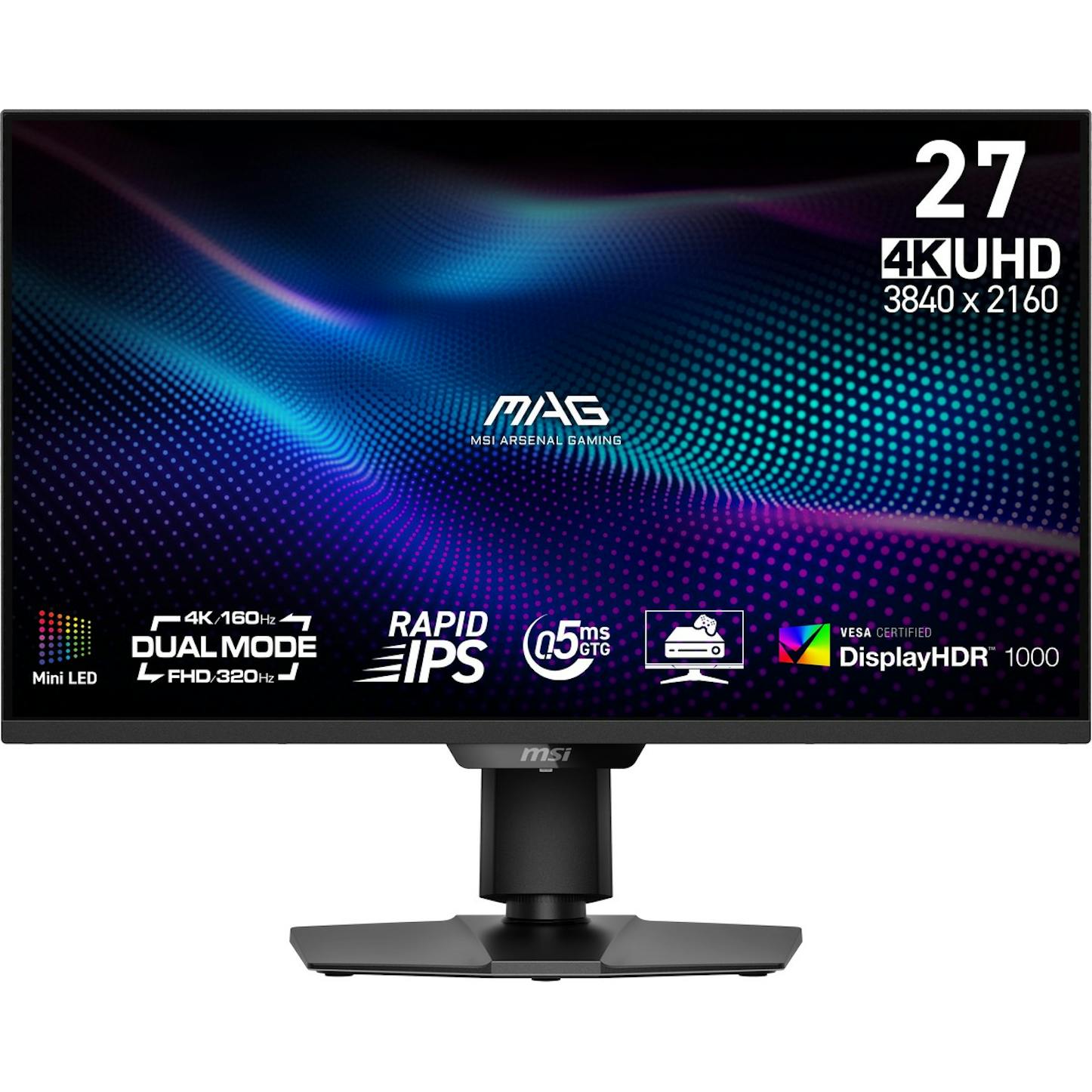

MSI MAG 274UPDF E16M 27" 3840x2160/1920x1080 Dual Mode Rapid IPS Mini LED 160Hz/320Hz 0.5ms A-Sync Widescreen Gaming Monitor Monitor
Product Technical Specification
| Efficiency Class | |
| EU Energy Efficiency Class | F |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
MSI MAG 274UPDF E16M Mini LED Gaming Monitor
The MSI MAG 274UPDF E16M Gaming Monitor features Mini-LED technology, Dual Mode with UHD 160Hz and FHD 320Hz, and AI Navigator for a boosted gaming experience. Its stunning 27-inch Rapid IPS display with Quantum Dot technology delivers a 0.5ms (GtG, Min.) response time and is VESA DisplayHDR 1000 certified for exceptional visuals. Unleash your full potential.
Mini-LED
Enhance HDR performance with full-array local dimming, delivering deeper blacks, brighter whites, and lifelike visuals through precise control of up to 1152 dimming zones.
Dual Mode
Easily switch between different resolutions and refresh rates, allowing user to adjust settings based on the game.
Rapid IPS
Make sure the intensity and purity of colors when gaming.
VESA DisplayHDR 1000
VESA certified eye-catching details through precise contrast and shadow adjustment.
0.5ms (GtG, Min.) Response Time
Eliminate screen tearing and choppy frame rates with 0.5ms (GtG, Min.) Response Time.
Console Mode
Optimized for seamless compatibility with gaming consoles like PS5 and Xbox Series X|S
SPECIFICATIONS
Panel Size 27"
Active Display Area (mm) 596.16 (H) x 335.34 (V)
Curvature Flat
Panel Type Rapid IPS with Mini-LED (1152 Zones)
Panel Resolution Normal: 3840 x 2160 (UHD)
Dual Mode: 1920 x 1080 (FHD)
Pixel Pitch (H x V) 0.15525 (H) x 0.15525 (V)
Aspect Ratio 16:9
Brightness (nits) SDR: 400 cd/m²
HDR: 1000 cd/m² (Peak)
Contrast Ratio 1000:1 (Typ.)
DCR 100000000:1
Signal Frequency
Normal: 180~356KHz (H) / 48~160Hz
(V)
Dual Mode: 180~356KHz (H) /
48~320Hz (V)
ACTIVATED RANGE Normal: 48~160Hz
Dual Mode: 48~320Hz
Refresh Rate Normal: 160Hz
Dual Mode: 320Hz
Response time 0.5ms (GtG, Min.)
DYNAMIC REFRESH RATE
TECHNOLOGY Adaptive-Sync
HDR Support VESA DisplayHDR 1000
Video ports
1x DisplayPort 1.4a (HBR3)
2x HDMI™ 2.1 (UHD@160Hz)
1x Type-C (DP alt.) w/ 15W Power
Delivery
Audio ports 1x Headphone-out
Viewing Angle 178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB 100% / 98% / 143% (CIE1976 Standard)
Surface Treatment Anti-glare
Display Colors 1.07B, 10 bits (8 bits + FRC)
Console Mode
Supported Resolution & Refresh Rate:
1080p: 60Hz and 120Hz
1440p: 60Hz and 120Hz
2160p: 60Hz and 120Hz
HDMI™ CEC: Supported
VRR: PS5 and Xbox Supported
Frameless Design Yes
PIP / PBP Function Yes
Power Type External Adaptor 19V 7.89A
Power Input 100~240V, 50/60Hz
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Pivot) -90° ~ 90°
Adjustment (Height) 0~110 mm
Kensington Lock Yes
VESA Mounting 100 x 100 mm
Dimension with Stand (W x D x H)
613.10 x 227.90 x 423.53 mm
(24.14 x 8.97 x 16.67 inch)
Dimension without Stand (W x D x H)
613.10 x 68.77 x 375.31 mm
(24.14 x 2.71 x 14.78 inch)
Weight (NW / GW) 7.5 kg (16.54 lbs) / 11 kg (24.25 lbs)
Carton Dimension (W X D X H) 910 x 170 x 470 mm
(35.83 x 6.69 x 18.50 inch)
Accessories
1x DP Cable (1.4a), 1x Power Cord (C5),
1x AC Adaptor, 1x Quick Guide, 4x VESA
Wall Mount Screw
Note
HDMI™: Normal (UHD): 3840 x 2160 (Up to 160Hz)
Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
DisplayPort: Normal (UHD): 3840 x 2160 (Up to 160Hz)
Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
Type-C: Normal (UHD): 3840 x 2160 (Up to 160Hz)
Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)
Support: HDMI™ CEC, PIP/PBP; Non
Support: KVM
Connections
2x HDMI™ 2.1 (UHD@160Hz)
DisplayPort 1.4a (HBR3)
USB Type-C (15W PD)
Headphone-out
