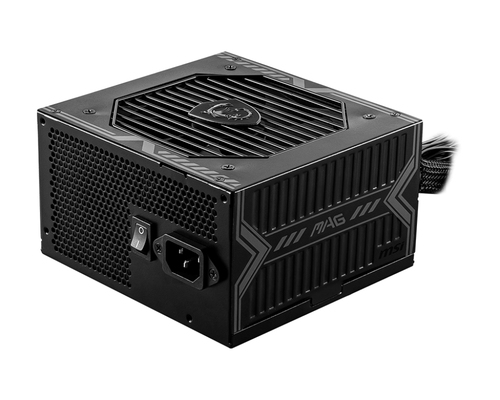

MSI MAG A750BN PCIE5 power supply unit 750 W 24-pin ATX ATX Black
Product Technical Specification
| Power | |
| Total power | 750 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Maximum input current (@110V) | 10 |
| Maximum input current (@220V) | 5 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 |
| Combined power (+12V) | 750 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 62.5 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 2.5 |
| Efficiency | 85 |
| Power protection features | Over current,Over power,Over voltage,Short circuit |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Illumination | No |
| On/off switch | Yes |
| Packaging data | |
| Package width | 150 |
| Package depth | 140 |
| Package height | 86 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
| Power | |
| Total power | 750 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Maximum input current (@110V) | 10 |
| Maximum input current (@220V) | 5 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 |
| Combined power (+12V) | 750 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 62.5 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 2.5 |
| Efficiency | 85 |
| Power protection features | Over current,Over power,Over voltage,Short circuit |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (16-pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Illumination | No |
| On/off switch | Yes |
| Packaging data | |
| Package width | 150 |
| Package depth | 140 |
| Package height | 86 |
