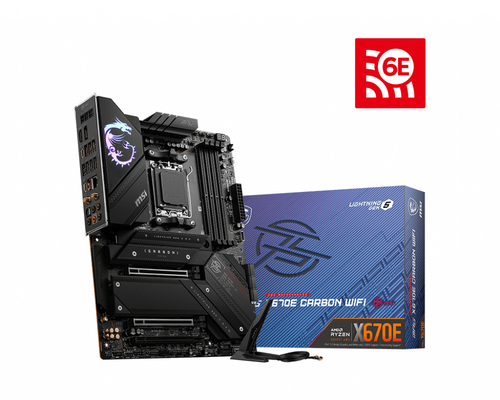

MSI MPG X670E CARBON WIFI motherboard AMD X670 Socket AM5 ATX
Product Technical Specification
Processor | |
Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Compatible processor series | AMD Ryzen 7 |
Maximum number of SMP processors | 1 |
Memory | |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Maximum internal memory | 128 |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2,SATA II |
RAID levels | 0,1,10 |
Internal I/O | |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 4 |
Number of SATA III connectors | 6 |
Audio connector | Yes |
Front panel connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
RGB LED pin header | Yes |
Rear panel I/O ports | |
USB 2.0 ports quantity | 6 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
S/PDIF out port | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Realtek RTL8125-BG |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Features | |
Motherboard chipset | AMD X670 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 |
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | AMD |
Windows operating systems supported | Windows 10 Home x64,Windows 11 x64 |
Weight & dimensions | |
Width | 304.8 |
Depth | 243.84 |
Packaging content | |
Cables included | SATA |
Drivers included | Yes |
Delivery Options

Economy Delivery (UK)

Business Express
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Processor | |
Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Compatible processor series | AMD Ryzen 7 |
Maximum number of SMP processors | 1 |
Memory | |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Maximum internal memory | 128 |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2,SATA II |
RAID levels | 0,1,10 |
Internal I/O | |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 4 |
Number of SATA III connectors | 6 |
Audio connector | Yes |
Front panel connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
RGB LED pin header | Yes |
Rear panel I/O ports | |
USB 2.0 ports quantity | 6 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
S/PDIF out port | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
LAN controller | Realtek RTL8125-BG |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Features | |
Motherboard chipset | AMD X670 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 |
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | AMD |
Windows operating systems supported | Windows 10 Home x64,Windows 11 x64 |
Weight & dimensions | |
Width | 304.8 |
Depth | 243.84 |
Packaging content | |
Cables included | SATA |
Drivers included | Yes |
