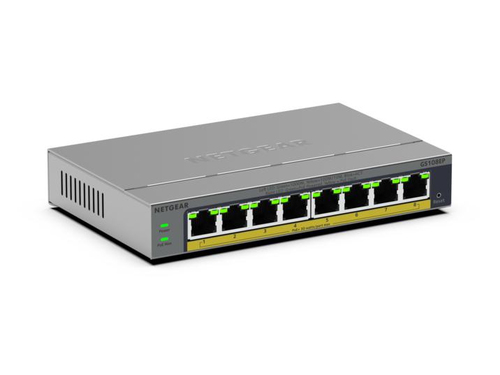

NETGEAR GS108EP Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3az |
| Port mirroring | Yes |
| Port trunking | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Supported data transfer rates | |
| MAC address table | 4000 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ),Strict Priority Queue (SPQ),Weighted Round Robin (WRR) |
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity,Link,PoE,Power,Speed,System |
| Performance | |
| Mean time between failures (MTBF) | 859126 |
| Power | |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 62 |
| Other features | |
| Connectivity technology | Wired |
| Bandwidth | 16 |
| Power requirements | |
| Networking features | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Weight & dimensions | |
| Weight | 522 |
| Certificates | |
| Compliance certificates | BSMI,CE,Federal Communications Commission (FCC),KC,VCCI |
| Certification | |
Delivery Options
Economy Delivery (UK)
Business Express
Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited confi guration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and confi guration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.
Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS108E switch comes in a sturdy metal case with a fan-less design for silent operation.
NETGEAR Green
- Up to 60% lower power consumption than the non-Green version;
- Auto power-down and cable-length detection for energy savings;
- Packaging manufactured with at least 80% recycled materials.
