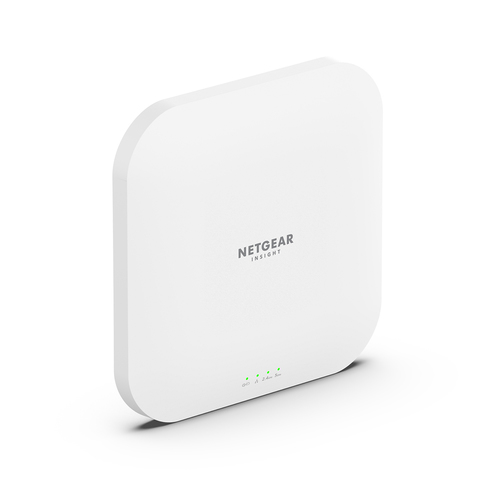

NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point (WAX620) 3600 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 3600 |
| Maximum data transfer rate (2.4 GHz) | 1200 |
| Maximum data transfer rate (5 GHz) | 2400 |
| Ethernet LAN data rates | 100,1000,2500 |
| Networking standards | IEEE 802.11ax,IEEE 802.11i,IEEE 802.3af,IEEE 802.3at |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | OFDM |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Security | |
| Security algorithms | EAP-TLS,PEAP,SSL/TLS,TTLS,WPA,WPA2,WPA3 |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 |
| Output current | 2.5 |
| Design | |
| Placement | Ceiling,Wall |
| Product colour | White |
| LED indicators | LAN,Power,WLAN |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.3 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Weight & dimensions | |
| Width | 205.7 |
| Depth | 205.7 |
| Height | 34.3 |
| Weight | 783 |
| Packaging data | |
| Number of products included | 1 |
| Mounting kit | Yes |
| Quick start guide | Yes |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring
Easy Setup
Set up, configure, and manage with NETGEAR Insight
Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
