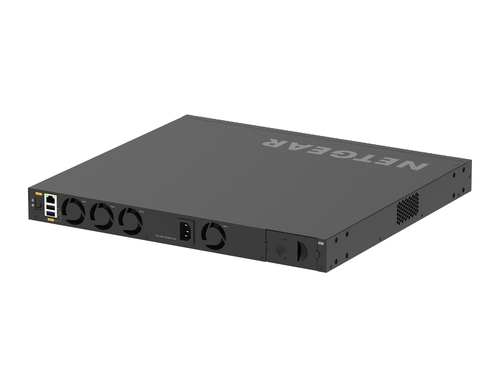

NETGEAR M4350-24F4V Managed L3 1U Black
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 24 |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qav,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ak,IEEE 802.3bz,IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| 6to4 tunnel | Yes |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Voice VLAN |
| Number of VLANs | 4093 |
| Data transmission | |
| Switching capacity | 680 |
| Throughput | 505.92 |
| MAC address table | 16000 |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 1.06 |
| Latency (10 Gbps) | 0.63 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 32 |
| Security | |
| DHCP features | DHCP Option 150,DHCP Option 66,DHCP Option 67,DHCP relay,DHCP server,DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN,MAC-based authentication |
| Root protection | Yes |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Authentication type | RADIUS,TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ),Weighted random early detection (WRED) |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMP V1, V2, V3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF,OSPFv2,OSPFv3,RIP,RIP-1,RIP-2 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Airflow direction | Front-to-back airflow |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 1800 |
| Memory type | DDR4-SDRAM |
| Internal memory | 2048 |
| Flash memory | 512 |
| Noise level | 61.8 |
| sFlow | Yes |
| Mean time between failures (MTBF) | 778741 |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Input current | 6.3 |
| Power consumption (typical) | 119.3 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 3000 |
| Heat dissipation | 374.6 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 400 |
| Height | 43.2 |
| Weight | 6250 |
| Packaging data | |
| Cables included | AC,USB Type-C |
| User guide | Yes |
| Rack mount kit | Yes |
| Included power plug types | EU,NA,UK |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | BSMI,CCC,CE,Federal Communications Commission (FCC),Low Voltage Directive (LVD) |
| Other features | |
| Power supply | 240 |
Delivery Options
Economy Delivery (UK)
Business Express
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
