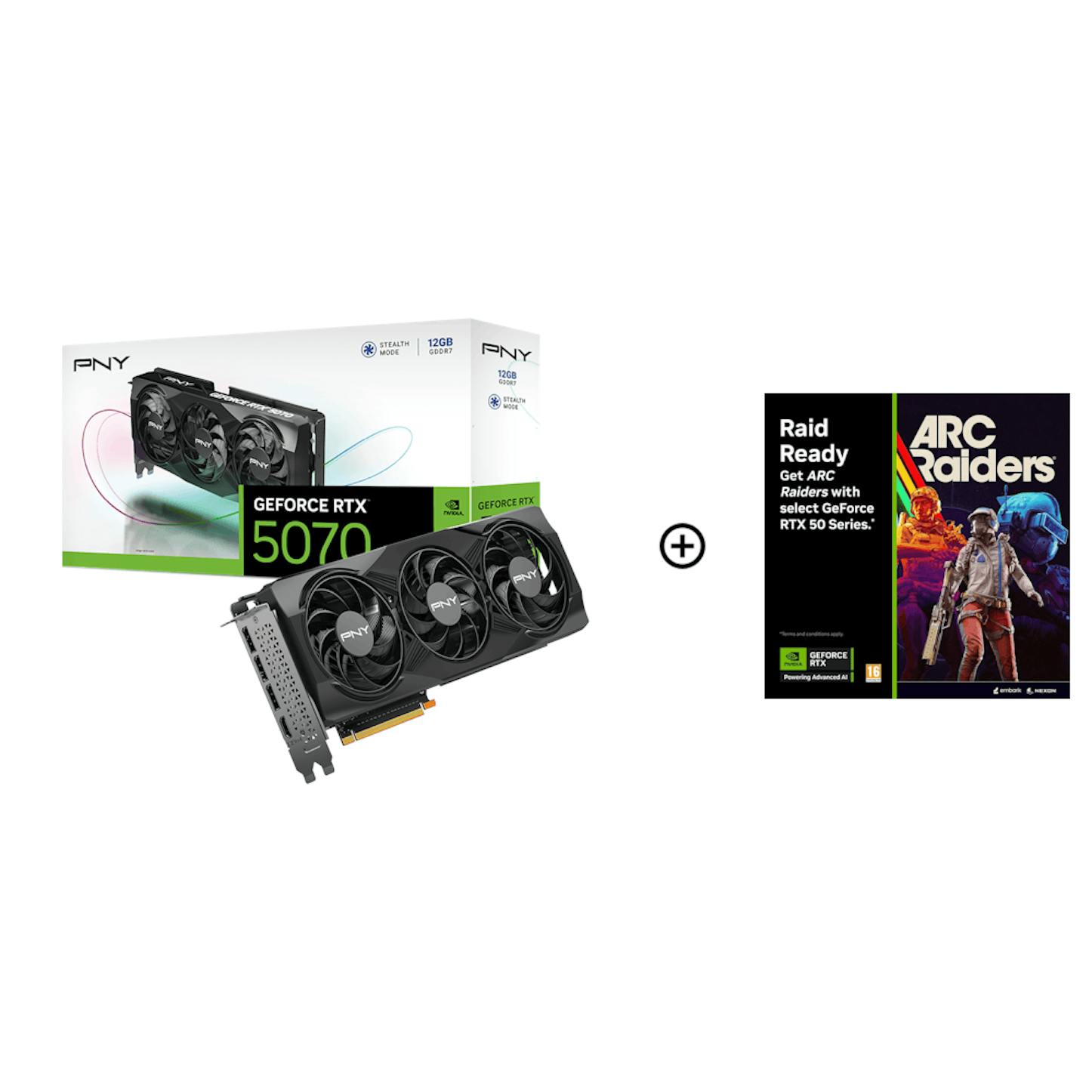

PNY GeForce RTX 5070 Triple Fan 12GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 299.5 mm |
| Width | 120 mm |
| Height | 48 mm |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2325 MHz |
| Max. GPU Clock (Boost) | 2512 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5070 |
| Graphics Chip | GB205-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 6144 |
| Tensor Cores | 192 |
| Raytracing Cores / Ray Acceleratorss | 48 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 12 |
| GPU Memory Interface (bit) | 192 |
| GPU Memory Bandwidth (GB/s) | 672 |
| GPU Effective Memory Clock (MHz) | 2209 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Key Features
- NVIDIA DLSS 4
- NVIDIA Reflex 2
- GDDR7 Graphics Memory
- NVIDIA App
- PCI Express Gen 5
- NVIDIA Broadcast
System Requirements
- PCI Express Gen 5-compliant motherboard with one 2.4-width x16 graphics slot
- Two 8-pin supplementary power connectors
- 650 W or greater system power supply
- Microsoft Windows 11 64-bit, Windows 10 64-bit, Linux 64-bit
- Internet connection
Product Specifications
| Specification | Details |
|---|---|
| NVIDIA CUDA Cores | 6144 |
| Clock Speed | 2325 MHz |
| Boost Speed | 2512 MHz |
| Memory Speed | 28 |
| Memory Size | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Bandwidth (GB/s) | 672 |
| TDP | 250 W |
| Outputs | DisplayPort 2.1b with UHBR20 (x3), HDMI 2.1b |
| Multi-Screen | 4 |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC |
| Power Input | 1x16 (1x16 to 2x8 adapter included) |
| Bus Type | PCI-Express 5.0 x16 |
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 299.5 mm |
| Width | 120 mm |
| Height | 48 mm |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2325 MHz |
| Max. GPU Clock (Boost) | 2512 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5070 |
| Graphics Chip | GB205-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 6144 |
| Tensor Cores | 192 |
| Raytracing Cores / Ray Acceleratorss | 48 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 12 |
| GPU Memory Interface (bit) | 192 |
| GPU Memory Bandwidth (GB/s) | 672 |
| GPU Effective Memory Clock (MHz) | 2209 |
