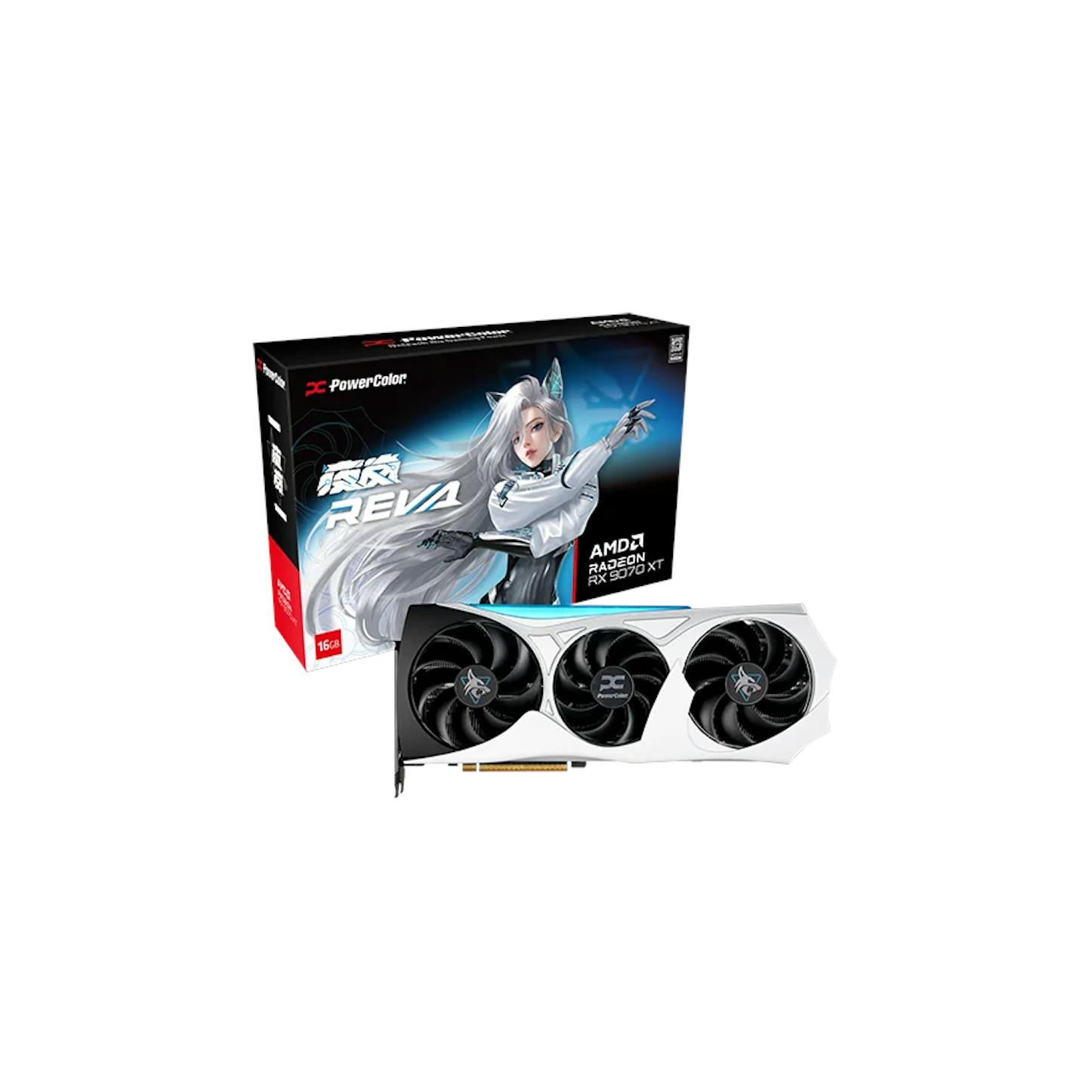

PowerColor Radeon RX 9070 XT Hellhound REVA Edition 16GB GDDR6 Graphics Card
Product Technical Specification
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Dimensions | |
| Length / Depth | 332 mm |
| Width | 122 mm |
| Height | 57 mm |
| Water Cooling | |
| Watercooling | No |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | White |
| Lighting | |
| Lighting / RGB | Yes |
| Lighting Colour | RGB |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2460 MHz |
| Max. GPU Clock (Boost) | 3010 MHz |
| Max. Memory Clock | 2518 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (2x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9070 XT |
| Graphics Chip | Navi 48 |
| Manufacturing Process | 4 nm |
| Shader Units | 4096 |
| Raytracing Cores / Ray Acceleratorss | 64 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 64 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 256 |
| GPU Effective Memory Clock (MHz) | 20000 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Specification | Details |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9070 XT |
| Model Name | RX9070XT 16G-L/OC/REVA |
| Series | Hellhound Reva |
| Stream Processor | 4096 Units |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20.0 Gbps |
| Memory Interface | 256-bit |
| Engine Clock (OC) |
up to 2460 MHz (Game)¹ up to 3010 MHz (Boost)² |
| Engine Clock (STD/Silent) |
up to 2400 MHz (Game)¹ up to 2970 MHz (Boost)² |
| Bus Standard | PCIe 5.0 x16 |
| Standard Display Connectors |
1 × HDMI 2.1b 3 × DisplayPort 2.1a |
| DirectX® Support | 12 |
| OpenGL | 4.6 |
| AMD Eyefinity Technology | Support |
| AMD Stream Technology | Support |
| AMD Smart Access Memory | Support |
| Maximum Resolution (DisplayPort) | 7680 × 4320 |
| Maximum Resolution (HDMI) | 7680 × 4320 |
| Board Dimensions |
332 × 122 × 57 mm 346 × 151 × 57 mm (with bracket) |
| Slot | 2.5 |
| Minimum System Power Requirement | 800W |
| Extension Power Connector | Two 8-pin PCI Express power connectors |
| Remarks |
¹ Game Clock is the expected GPU clock under typical gaming workloads. ² Boost Clock is the maximum achievable frequency under burst workloads. All information is for reference only and subject to change without notice. HDMI and related marks are trademarks of HDMI Licensing Administrator, Inc. |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Dimensions | |
| Length / Depth | 332 mm |
| Width | 122 mm |
| Height | 57 mm |
| Water Cooling | |
| Watercooling | No |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | White |
| Lighting | |
| Lighting / RGB | Yes |
| Lighting Colour | RGB |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2460 MHz |
| Max. GPU Clock (Boost) | 3010 MHz |
| Max. Memory Clock | 2518 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (2x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9070 XT |
| Graphics Chip | Navi 48 |
| Manufacturing Process | 4 nm |
| Shader Units | 4096 |
| Raytracing Cores / Ray Acceleratorss | 64 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 64 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 256 |
| GPU Effective Memory Clock (MHz) | 20000 |
