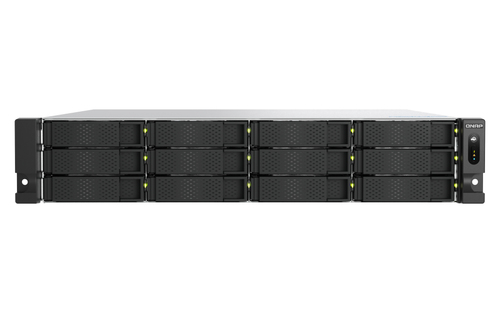

QNAP TS-H1277AXU-RP NAS Rack (2U) Ethernet LAN Black E-2136
Product Technical Specification
| Storage | |
| Storage drive capacity | 14000 |
| Storage drive interface | Serial ATA II,Serial ATA III |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| Storage drive sizes supported | 2.5,3.5 |
| RAID support | Yes |
| RAID levels | 0,1,5,6,10,50,60,JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32,HFS+,NTFS,ZFS,exFAT,ext3,ext4 |
| Storage drives installed | Yes |
| Total installed storage capacity | 168 |
| Number of storage drives installed | 12 |
| Number of storage drives supported | 12 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Disk roaming | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2136 |
| Processor frequency | 3.3 |
| Processor boost frequency | 4.5 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor cache | 12 |
| Bus type | DMI3 |
| CPU configuration (max) | 1 |
| Memory | |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 |
| Memory slots | 4 |
| Internal memory | 32 |
| Memory form factor | UDIMM |
| ECC | Yes |
| Flash memory | 5000 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10000 |
| Ethernet LAN data rate supported (max) | 10000 |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 6 |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 |
| Fan diameter | 60 |
| LED indicators | HDD,LAN,Status |
| Performance | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud,iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES,FIPS 140-2,TLS |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log | Yes |
| Hot spare | Yes |
| Disk scan | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | CIFS/SMB |
| Software | |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 105.12 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Fan voltage | 12 |
| Weight & dimensions | |
| Width | 482 |
| Depth | 562 |
| Height | 88.3 |
| Packaging content | |
| Cables included | AC,LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 84 |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -20 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
