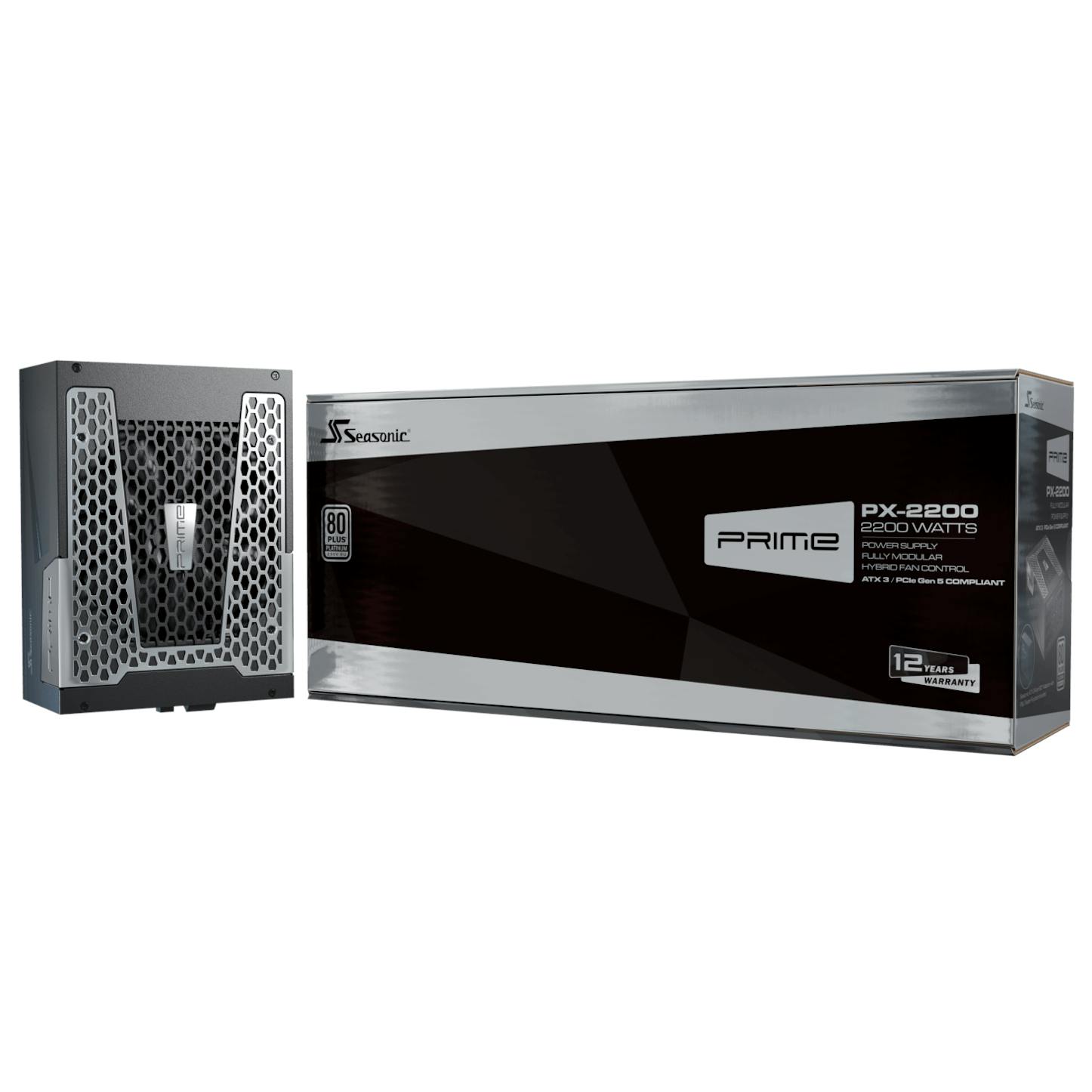

Seasonic PRIME PX 3.0 2200W ATX 3.1 80 Plus Platinum Power Supply
Capacity: Offers high power output to support power-hungry systems, including mu
Product Technical Specification
| Colour | |
| Primary Colour | Black |
| Product Series | |
| Product Series/Family | Prime |
| Fan Specifications | |
| Fan Size | 135 mm |
| Power Specifications | |
| Total Power Output | 2200 W |
| Power Output +12V rails | 2200 W |
| Lighting | |
| Lighting / RGB | No |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Dimensions | |
| Length / Depth | 210 mm |
| Width | 150 mm |
| Height | 86 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | OVP (Overvoltage and Undervoltage Protection), UVP (Undervoltage Protection), SCP (Short-Circuit Protection), OTP (Overtemperature Protection), OCP (Overcurrent Protection) |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 1 |
| 12VHPWR PCIe Power Connectors | 4 |
| 8 Pin PCIe Power Connectors | 4 |
| 6+2 Pin PCIe Power Connectors | 4 |
| SATA Power Connectors | 6 |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 610 mm |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.
PRIME PX ATX 3 at a Glance
- 2200W Power Capacity: Offers high power output to support power-hungry systems, including multi-GPU setups.
- ATX 3.1 Compliance: Ensures compatibility with the latest standards for future-proofing your system.
- PCIe 5.1 Support: Provides enhanced performance and efficiency for next-gen GPUs and high-end applications.
- Fully Modular Design: Simplifies cable management with detachable cables for clean builds.
- Digital Fan Control: Features advanced fan management for optimized cooling and quieter operation.
- 12-Year Warranty: Backed by a long-term warranty, ensuring durability and reliability.
PRIME PX ATX 3 Specification
| 80PLUS® | Platinum |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control |
| Fan Bearing | Fluid Dynamic Bearing |
| Fan Life Expectancy | 50,000 hours at 40°C, 15% - 65% RH |
| Modularity | Fully Modular |
| Cable Type | Individual Black Cables with Braided Pattern |
| Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Fixed 230 V |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 12 Years |
| Colour | |
| Primary Colour | Black |
| Product Series | |
| Product Series/Family | Prime |
| Fan Specifications | |
| Fan Size | 135 mm |
| Power Specifications | |
| Total Power Output | 2200 W |
| Power Output +12V rails | 2200 W |
| Lighting | |
| Lighting / RGB | No |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Platinum |
| Dimensions | |
| Length / Depth | 210 mm |
| Width | 150 mm |
| Height | 86 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | OVP (Overvoltage and Undervoltage Protection), UVP (Undervoltage Protection), SCP (Short-Circuit Protection), OTP (Overtemperature Protection), OCP (Overcurrent Protection) |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 1 |
| 12VHPWR PCIe Power Connectors | 4 |
| 8 Pin PCIe Power Connectors | 4 |
| 6+2 Pin PCIe Power Connectors | 4 |
| SATA Power Connectors | 6 |
| Cable Specifications | |
| Max. CPU Power Cable Length | 700 mm |
| Max. 24-Pin Motherboard Power Cable Length | 610 mm |
