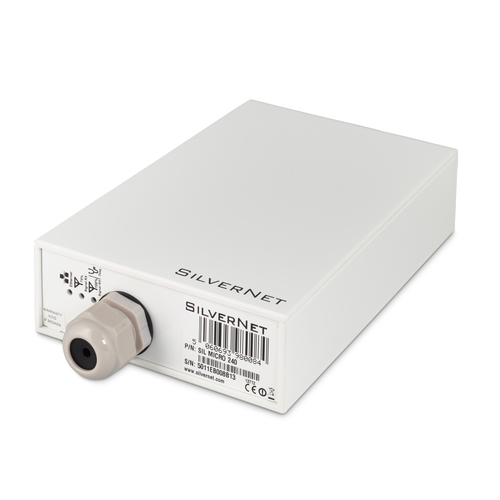

SilverNet MICRO 240 Network bridge 240 Mbit/s White
Product Technical Specification
| Data transmission | |
| Maximum data transfer rate | 240 |
| Maximum transfer distance | 2000 |
| Supported data transfer rates | 240Mbps |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 14 |
| Pan/tilt-axis range | 180 |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 300 |
| Frequency band | 5.1 - 5.8 |
| Transmission gain | 0 - 14 |
| Signal strength | -40 |
| Channels quantity | 25 |
| Modulation | 16-QAM,64-QAM,256-QAM,BPSK,QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Output power (dBm) | 26 |
| Indoor range | 2000m |
| Outdoor range | 2000m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11i,IEEE 802.11n,IEEE 802.1Q,IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES,802.1x RADIUS,SNMPv2,SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |
| LED indicators | LAN,Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Mean time between failures (MTBF) | 60000 |
| Country of origin | United Kingdom |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | DC,PoE |
| AC input voltage | 100-240 |
| Power supply | 15.4 |
| DC input voltage | 24-48/48-56 |
| Power consumption (typical) | 6 |
| Power consumption (max) | 16 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 |
| Operating temperature (T-T) | -4 - 158 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 90 |
| Storage relative humidity (H-H) | 0 - 95 |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Antenna diameter | 205 |
| Width | 179 |
| Depth | 120 |
| Height | 45 |
| Weight | 500 |
| Packaging content | |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 130 |
| Package depth | 300 |
| Package height | 100 |
| Package weight | 1420 |
| Package type | Box |
| Quantity per pack | 1 |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
Delivery Options
Economy Delivery (UK)
Business Express
It can be used in a Point to Point or Point to MultiPoint system.
Nominated in 2012 for 'Security Product of the Year'. The SIL MICRO 240 has a high MTBF and robust design. It has all the features of the SIL MICRO and is available in standard white with other colours available on special order.
