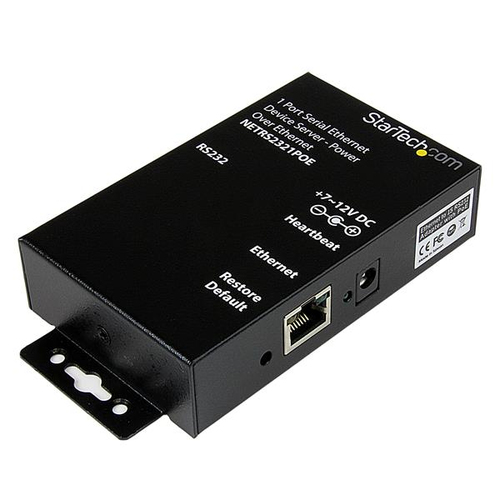

StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet
Product Technical Specification
| Technical details | |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Ethernet LAN data rates | 10,100 |
| Data transfer rate | 0.1152 |
| Networking standards | IEEE 802.3af |
| Baud rate | 115.2 |
| Data bits | 6,7,8 |
| Stop bits | 1,2 |
| Mean time between failures (MTBF) | 233403 |
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Input voltage | 100 - 240 |
| Output voltage | 12 |
| Output current | 0.1 |
| Power consumption | 100 |
| Power plug type | Type M |
| Compatible power plug types | EU,UK,US |
| Input current | 0.3 |
| Protocols | |
| Supported network protocols | UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping |
| Indication | |
| LED indicators | Activity,Link |
| Link/Act LED | Yes |
| Software | |
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate,Windows XP Home,Windows XP Professional |
| Weight & dimensions | |
| Weight | 259 |
| Dimensions (WxDxH) | 66.3 x 107 x 25 |
| Package width | 296 |
| Package length | 192 |
| Package height | 70 |
| Package weight | 963 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 |
| Storage temperature (T-T) | -20 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Other features | |
| Compatible operating systems | Windows Vista (32), XP (32), 2000 |
| Packaging content | |
| User guide | Yes |
| Sustainability | |
| Sustainability certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!
The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.
The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PoE support gives you the freedom to situate your serial device where it is needed even when no power outlet is available
- IP-based connection to your serial devices allows remote administration from anywhere; even over the Internet
- Remotely connect to multiple NETRS2321POE units with a single PC for simple and efficient management of devices from a single location
| Technical details | |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Ethernet LAN data rates | 10,100 |
| Data transfer rate | 0.1152 |
| Networking standards | IEEE 802.3af |
| Baud rate | 115.2 |
| Data bits | 6,7,8 |
| Stop bits | 1,2 |
| Mean time between failures (MTBF) | 233403 |
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Input voltage | 100 - 240 |
| Output voltage | 12 |
| Output current | 0.1 |
| Power consumption | 100 |
| Power plug type | Type M |
| Compatible power plug types | EU,UK,US |
| Input current | 0.3 |
| Protocols | |
| Supported network protocols | UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping |
| Indication | |
| LED indicators | Activity,Link |
| Link/Act LED | Yes |
| Software | |
| Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows Vista Business,Windows Vista Enterprise,Windows Vista Home Basic,Windows Vista Home Premium,Windows Vista Ultimate,Windows XP Home,Windows XP Professional |
| Weight & dimensions | |
| Weight | 259 |
| Dimensions (WxDxH) | 66.3 x 107 x 25 |
| Package width | 296 |
| Package length | 192 |
| Package height | 70 |
| Package weight | 963 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 |
| Storage temperature (T-T) | -20 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Other features | |
| Compatible operating systems | Windows Vista (32), XP (32), 2000 |
| Packaging content | |
| User guide | Yes |
| Sustainability | |
| Sustainability certificates | RoHS |
