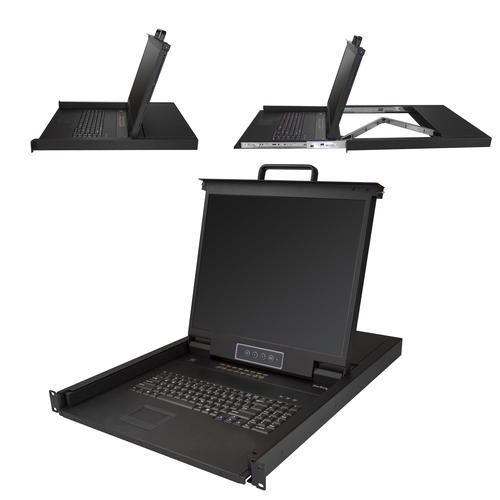

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
Product Technical Specification
| Display | |
| Display diagonal | 19 |
| Display resolution | 1280 x 1024 |
| Display | TFT LCD |
| Display brightness | 250 |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.264 x 0.264 |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 |
| Technical details | |
| Mean time between failures (MTBF) | 50000 |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80 |
| Audio support | No |
| Daisy chain | No |
| Key lock | No |
| Number of computers controlled | 16 |
| Sustainability certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 18 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Built-in touchpad | Yes |
| Certificates | |
| Certification | PSE, FCC, UL, CE, REACH |
| Power | |
| Power consumption (typical) | 23 |
| AC adapter input voltage | 100 - 240 |
| Input current | 1.5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Weight & dimensions | |
| Width | 483 |
| Height | 43 |
| Depth | 643 |
| Weight | 13500 |
| Mounting depth (min) | 605 |
| Mounting depth (max) | 890 |
| Packaging data | |
| Package weight | 21000 |
| Package width | 615 |
| Package depth | 765 |
| Package height | 190 |
| Packaging content | |
| Cables included | KVM |
| Screws included | Yes |
| Number of screws | 8 |
| Mounting brackets included | Yes |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ,EU,JP,NA,UK |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 615 |
| Master (outer) case length | 765 |
| Master (outer) case height | 190 |
| Products per master (outer) case | 1 |
Delivery Options
Economy Delivery (UK)
Business Express
This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8' [60.5 cm] to 35' [89 cm] (incl. mounting hardware)
| Display | |
| Display diagonal | 19 |
| Display resolution | 1280 x 1024 |
| Display | TFT LCD |
| Display brightness | 250 |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.264 x 0.264 |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 |
| Technical details | |
| Mean time between failures (MTBF) | 50000 |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80 |
| Audio support | No |
| Daisy chain | No |
| Key lock | No |
| Number of computers controlled | 16 |
| Sustainability certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 18 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Built-in touchpad | Yes |
| Certificates | |
| Certification | PSE, FCC, UL, CE, REACH |
| Power | |
| Power consumption (typical) | 23 |
| AC adapter input voltage | 100 - 240 |
| Input current | 1.5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Weight & dimensions | |
| Width | 483 |
| Height | 43 |
| Depth | 643 |
| Weight | 13500 |
| Mounting depth (min) | 605 |
| Mounting depth (max) | 890 |
| Packaging data | |
| Package weight | 21000 |
| Package width | 615 |
| Package depth | 765 |
| Package height | 190 |
| Packaging content | |
| Cables included | KVM |
| Screws included | Yes |
| Number of screws | 8 |
| Mounting brackets included | Yes |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ,EU,JP,NA,UK |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 615 |
| Master (outer) case length | 765 |
| Master (outer) case height | 190 |
| Products per master (outer) case | 1 |
