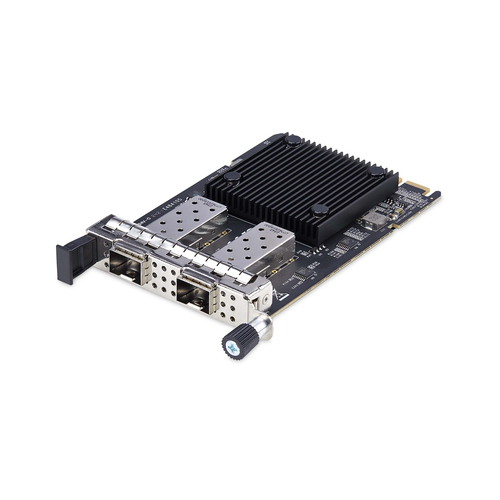

StarTech.com 2-Port 10Gbps SFP+ OCP 3.0 Server Network Card with Intel X710, SFF 4C+ Compatible, Dual-Port OCP NIC, Works with Windows & Linux
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | OCP 3.0 |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Network | |
| Maximum data transfer rate | 10000 |
| Networking standards | IEEE 1588,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Fiber mode structure | Multi-mode,Single-mode |
| Design | |
| Component for | PC/Server |
| Product colour | Black |
| Internal | Yes |
| Chipset | Intel X710-BM2 |
| LED indicators | Activity,Link |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 85 |
| Depth | 132 |
| Height | 15 |
| Weight | 104 |
| Packaging data | |
| Package width | 145 |
| Package depth | 215 |
| Package height | 35 |
| Package weight | 170 |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 605 |
| Master (outer) case length | 325 |
| Master (outer) case height | 305 |
| Products per master (outer) case | 80 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The 2-port 10Gbps OCP network interface card with the Intel X710-BM2 controller adds two open SFP+ slots to a server, increasing connectivity options and network performance.
OCP (Open Compute Project) Interface
The network adapter card uses the Open Compute Project (OCP) 3.0 (168-pin 4C+) connector, which was designed for servers to reduce size, increase port density, and provide hot-swappable capabilities for simplified maintenance and upgrades. The PCI Express Network Card is compatible with PCIe versions 3.0, 2.1, and 2.0.
10GbE and 1GbE SFP Support
This card supports 1000Base-T/SX/LX/EX and 10GBase-T/SR/LR/CR for various network configurations and distances. This is ideal for high-speed, low-latency connections such as those used in virtualization, data centers, and cloud computing. It works with any single-mode or multimode MSA-compliant or branded SFP or SFP+ module, active optical cable (AOC), or direct attach copper cable (DAC). Optical fiber allows longer cable runs than copper cabling while eliminating EMI.
Advanced Features
Network virtualization offloads reduce CPU overhead, increasing the efficiency of the virtualized network. PXE boot enables centralized OS deployment and updates. The card also supports 9K jumbo frames for reduced packet overhead and VLAN support for efficient network management. The card is compatible with Windows Server, Windows, and Linux.
