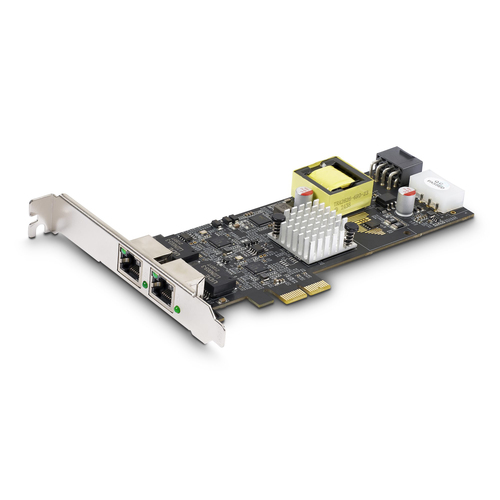

StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |
| PCI version | 2.0 |
| Network | |
| Maximum data transfer rate | 2500 |
| Networking standards | IEEE 1588,IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3i,IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| Design | |
| Component for | PC/Server |
| Internal | Yes |
| Chipset | Intel I225-V |
| LED indicators | Yes |
| Power | |
| Output voltage | 48 |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 Enterprise,Windows 11 Enterprise x64,Windows 11 Home,Windows 11 Pro,Windows 11 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019,Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 121 |
| Depth | 180 |
| Height | 22 |
| Weight | 111 |
| Packaging data | |
| Package width | 207 |
| Package depth | 144 |
| Package height | 38 |
| Package weight | 106 |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 440 |
| Master (outer) case length | 420 |
| Master (outer) case height | 320 |
| Products per master (outer) case | 40 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
This 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.
