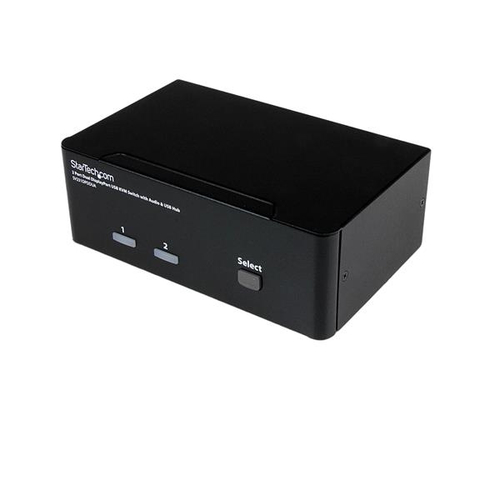

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub

Manufacturer: Startech | Model: SV231DPDDUA | Product ID: 5641 | Warranty: 3 Years
£272.00 (inc. VAT)
3 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity6
Console ports3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity2
USB hubYes
USB connector typeUSB Type-A
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3
DC-in jackYes
Network
Ethernet LANNo
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2400
DDC2B supportYes
Hot-Plug supportYes
Daisy chainNo
Number of users1
Audio channels7.1
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, FCC, REACH, TAA
Display
Built-in displayNo
On Screen Display (OSD)No
Power
AC input voltage110 - 240
Input current0.8
Output voltage12
Output current1.5
Power consumption (typical)18
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width161
Depth100
Height57.5
Weight734
Packaging data
Package width249
Package depth187
Package height100
Package weight1186
Packaging content
ManualYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportYes
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Tue 25th Aug 2026 to Fri 28th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Mon 24th Aug 2026 to Wed 26th Aug 2026
View all Delivery Options & International Rates
Control 2 high-resolution dual DisplayPort computers with a single console

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The StarTech.com Advantage

- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
