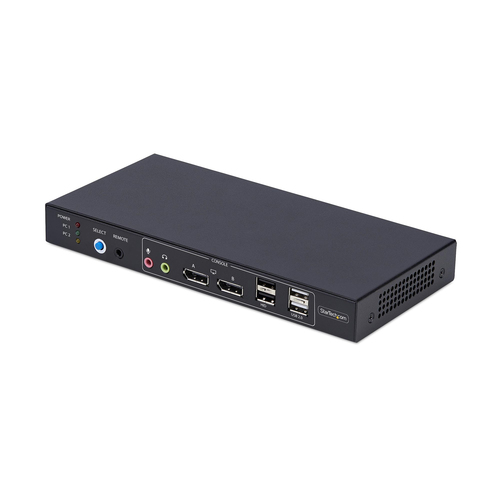

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix, 4K 60Hz, 4x USB Hub Ports, Hotkey Switching, DP 1.2 Matrix KVM, TAA Compliant
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Console USB ports quantity | 4 |
| Console DisplayPorts ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 |
| Data transfer rate (max) | 0.48 |
| Scan interval | 10,20,30,40,50,60 |
| Daisy chain | No |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium,Steel |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 87298 |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240 |
| Input current | 1 |
| Output voltage | 12 |
| Output current | 3 |
| Power consumption (typical) | 36 |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC),RoHS,Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Width | 105 |
| Depth | 221 |
| Height | 26 |
| Weight | 626 |
| Packaging data | |
| Package width | 250 |
| Package depth | 292 |
| Package height | 78 |
| Package weight | 1500 |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 539 |
| Master (outer) case length | 419 |
| Master (outer) case height | 333 |
| Products per master (outer) case | 10 |
Delivery Options
Economy Delivery (UK)
Business Express
The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.
Universal Compatibility
The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.
Customizable Switching
Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.
Reliable Performance
The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.
USB Audio
Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
