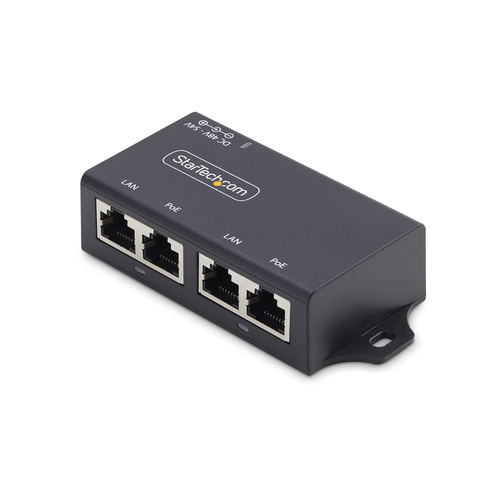

StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet

Manufacturer: STARTECH | Model: AF221CE-POE-INJECTOR | Product ID: 2407 | Warranty: 2 Years
£71.30 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Network
Ethernet interface typeGigabit Ethernet,Fast Ethernet
Ethernet LAN data rates10,1000,100
Cabling technology10/100/1000
Power over Ethernet (PoE)Yes
Networking standardsIEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3at
Auto MDI/MDI-XYes
Web-based managementNo
ChipsetIC Plus - IP802AR
Features
Product colourBlack
Housing materialPlastic
Wall mountableYes
Surge protectionYes
Maximum operating distance100
LED indicatorsYes
Jumbo frames supportYes
Jumbo frames9000
Auto-negotiationYes
Ports & interfaces
Ethernet LAN (RJ-45) ports4
RJ-45 input ports2
RJ-45 output ports2
DC-in jackYes
Power
Output power30
AC adapter input voltage100 - 240
Input current1.5
AC adapter output voltage52
Output current1.25
Power consumption (max)65
Total Power over Ethernet (PoE) budget30
Surge protection voltage2
Power plug typeType M
Suitable for use in country/locationEurope,United Kingdom
Certificates
Compliance certificatesRoHS
Operational conditions
Operating relative humidity (H-H)5 - 90
Storage temperature (T-T)-10 - 70
Weight & dimensions
Width46
Depth102
Height25
Weight60
Packaging content
Quick installation guideYes
Packaging data
Package width207
Package depth144
Package height38
Package weight105
Logistics data
Master (outer) case width440
Master (outer) case length420
Master (outer) case height320
Products per master (outer) case40

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Supply power and data to two PoE devices over standard Ethernet cabling

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
