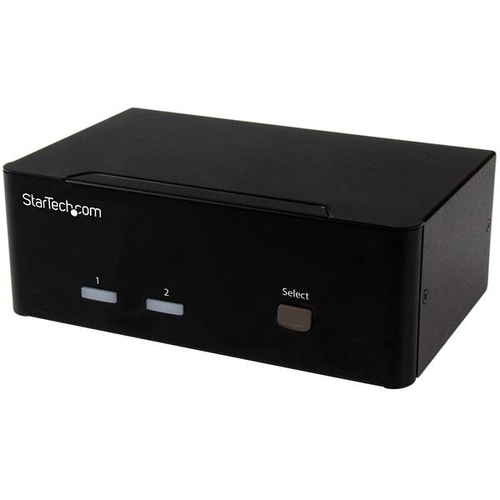

StarTech.com 2-port KVM switch with dual VGA - USB 2.0
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 6 |
| USB 2.0 Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone,USB A,VGA (D-Sub) |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 |
| Daisy chain | No |
| Number of users | 1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 72000 |
| Certification | CE, FCC, TAA, REACH |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 0.6 |
| Output current | 1.5 |
| Power consumption (typical) | 18 |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Width | 104 |
| Depth | 159 |
| Height | 57 |
| Weight | 768 |
| Packaging data | |
| Package width | 241 |
| Package depth | 187 |
| Package height | 92 |
| Package weight | 1200 |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| Audio support | Yes |
| IP control | No |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Maximize productivity with dual video
With support for two VGA video inputs and two different computers, this KVM switch maximizes productivity. Not only can you access multiple computers, but you can also use two VGA monitors on each computer streaming independent content to each display, which gives you the freedom to multitask and increase your productivity. The VGA ports support resolutions up to 1920x1200 for maximum screen viewing space.
Multi-system access
Featuring dual video and support for your keyboard and mouse, along with a 2-port USB hub for two additional peripheral devices, this KVM switch is perfect for accessing two separate systems using the same workstation. Support for your workstation plus two additional peripheral devices makes this KVM ideal for server control, simplifying access to multiple computer systems.
Hassle-free operation
This 2-port KVM ensures effortless operation with intuitive hotkey control. It provides a simple yet comprehensive solution for switching between each connected computer and also supports manual operation using the easy-to-access buttons located on the front of the switch.
The SV231DVGAU2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
