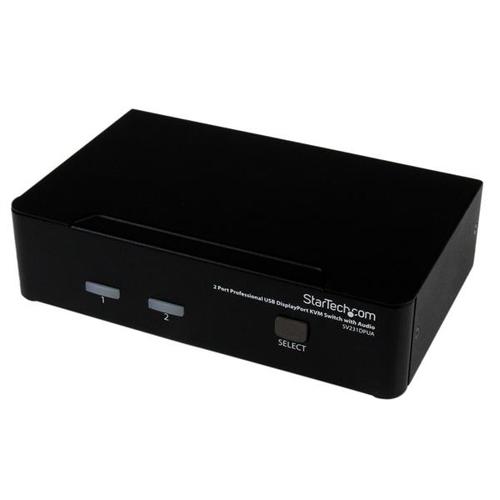

StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio

Manufacturer: Startech | Model: SV231DPUA | Product ID: 5199 | Warranty: 3 Year Warranty
£237.02 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity2
Console ports3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity4
USB hubYes
USB connector typeUSB Type-A
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3
DC-in jackYes
Network
Ethernet LANNo
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2400
DDC2B supportYes
Hot-Plug supportYes
Plug and PlayYes
Daisy chainNo
Audio channels7.1
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, UL, FCC, REACH
Display
Built-in displayNo
On Screen Display (OSD)No
Power
AC input voltage110 - 240
Input current0.8
Output voltage12
Output current2
Power consumption (typical)24
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width220
Depth130
Height44
Weight1100
Packaging data
Package width100
Package depth250
Package height181
Package weight1300
Packaging content
ManualYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportNo
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audio

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity2
Console ports3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity4
USB hubYes
USB connector typeUSB Type-A
Audio connectionsYes
Headphone outputs3
Number of microphone inputs3
DC-in jackYes
Network
Ethernet LANNo
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2400
DDC2B supportYes
Hot-Plug supportYes
Plug and PlayYes
Daisy chainNo
Audio channels7.1
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
CertificationCE, UL, FCC, REACH
Display
Built-in displayNo
On Screen Display (OSD)No
Power
AC input voltage110 - 240
Input current0.8
Output voltage12
Output current2
Power consumption (typical)24
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width220
Depth130
Height44
Weight1100
Packaging data
Package width100
Package depth250
Package height181
Package weight1300
Packaging content
ManualYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportNo
IP controlNo
