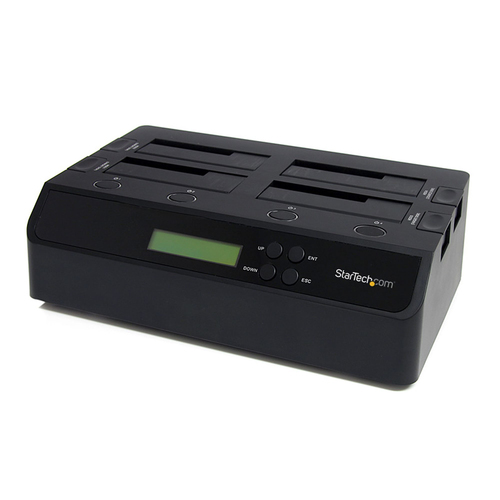

StarTech.com 4 Bay USB 3.0 eSATA to SATA Standalone 1:3 HDD Hard Drive Duplicator Dock
Product Technical Specification
| Technical details | |
| Product type | HDD duplicator |
| Number of simultaneous copies | 3 |
| Interface | USB/eSATA |
| Duplicator operating modes | Copy |
| USB connector type | USB Type-B |
| Product colour | Black |
| Housing material | Plastic |
| Maximum supported storage capacity | 16 |
| Plug and Play | Yes |
| Chipset | JMicron - JMB394 + JMS539 |
| Number of fans | 2 |
| Fan diameter | 60 |
| Port multiplier | Yes |
| LED indicators | Activity,Power |
| Sustainability certificates | RoHS |
| Hard drive | |
| Supported HDD sizes | 2.5,3.5 |
| Supported HDD interfaces | Serial ATA,Serial ATA II |
| Software | |
| Compatible operating systems | |
| Power | |
| Power consumption (typical) | 78 |
| AC input voltage | 110-240 |
| Output voltage | 12 |
| Output current | 6.5 |
| Included power plug types | EU,NA,UK |
| Operational conditions | |
| Operating relative humidity (H-H) | 8 - 90 |
| Operating temperature (T-T) | 5 - 80 |
| Storage temperature (T-T) | -40 - 70 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 285 x 170 x 94 |
| Weight | 1100 |
| Display | |
| Display | LCD |
| Packaging data | |
| Package weight | 2725 |
| Package height | 215 |
| Package width | 170 |
| Cables included | SATA,USB,eSATA |
| AC adapter included | Yes |
| Manual | Yes |
| Package depth | 343 |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Master (outer) case length | 368 |
| Master (outer) case width | 364 |
| Master (outer) case height | 475 |
| Products per master (outer) case | 4 |
Delivery Options
Economy Delivery (UK)
Business Express
The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage
- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer
- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type
