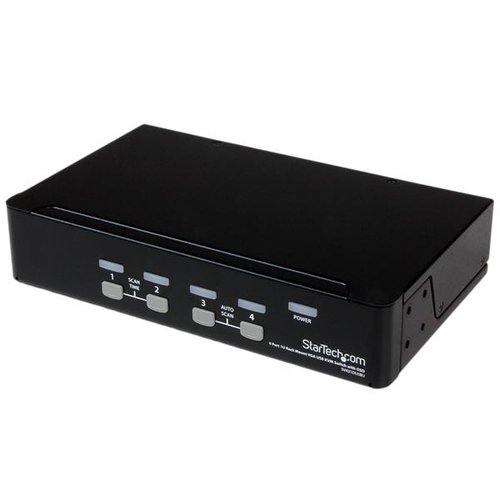

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD

Manufacturer: Startech | Model: SV431DUSBU | Product ID: 3036 | Warranty: 3 Year Warranty
£171.52 (inc. VAT)
5 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Number of computers controlled4
Keyboard port typeNo
Mouse port typeNo
Video port typeVGA
VGA (D-Sub) ports quantity5
Console portsUSB A,VGA (D-Sub)
Console USB ports quantity2
USB 2.0 ports quantity2
Audio connectionsNo
DC-in jackYes
Performance
Maximum resolution1920 x 1440
Maximum analog resolution1920 x 1440
Plug and PlayYes
Daisy chainYes
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialSteel
LED indicatorsPower
Hot keysYes
Mean time between failures (MTBF)143000
CertificationCE, FCC, TAA, REACH
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
AC input voltage110 - 240
Input current0.2
Output voltage9
Output current0.6
Power consumption (typical)5.4
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)5 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width220
Depth130
Height43
Weight957
Packaging data
Package width411
Package depth215
Package height89
Package weight1600
Packaging content
ManualYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportNo
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Ports & interfaces
Number of computers controlled4
Keyboard port typeNo
Mouse port typeNo
Video port typeVGA
VGA (D-Sub) ports quantity5
Console portsUSB A,VGA (D-Sub)
Console USB ports quantity2
USB 2.0 ports quantity2
Audio connectionsNo
DC-in jackYes
Performance
Maximum resolution1920 x 1440
Maximum analog resolution1920 x 1440
Plug and PlayYes
Daisy chainYes
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialSteel
LED indicatorsPower
Hot keysYes
Mean time between failures (MTBF)143000
CertificationCE, FCC, TAA, REACH
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
AC input voltage110 - 240
Input current0.2
Output voltage9
Output current0.6
Power consumption (typical)5.4
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)5 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width220
Depth130
Height43
Weight957
Packaging data
Package width411
Package depth215
Package height89
Package weight1600
Packaging content
ManualYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportNo
IP controlNo
