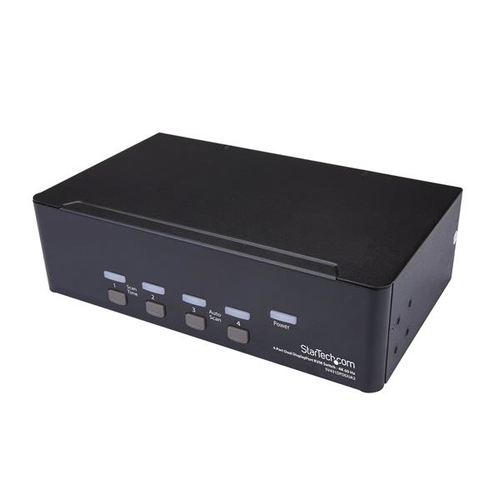

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz

Manufacturer: Startech | Model: SV431DPDDUA2 | Product ID: 6381 | Warranty: 2 Years
£646.13 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity10
Console ports3.5mm headphone,3.5mm mic,DisplayPort,USB A
Console USB ports quantity4
USB hubYes
USB connector typeUSB Type-A
Audio connectionsYes
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Data transfer rate (max)0.5
Scan interval3,8,15,30
Daisy chainNo
Design
Rack mountingYes
Rack capacity2U
Product colourBlack
Housing materialSteel
LED indicatorsPower
Hot keysYes
Mean time between failures (MTBF)142000
CertificationCE, FCC, TAA, REACH
Display
Built-in displayNo
Power
Power sourceAC
AC input voltage100 - 240
Input current0.6
Output voltage12
Output current1.5
Power consumption (typical)18
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,JP,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width216
Depth127
Height63
Weight1200
Packaging data
Package width243
Package depth297
Package height87
Package weight1800
Packaging content
Quick installation guideYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportYes
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

Maximize productivity with dual video

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Convenient multimedia and peripheral sharing

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.

The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.

The StarTech.com Advantage

- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
