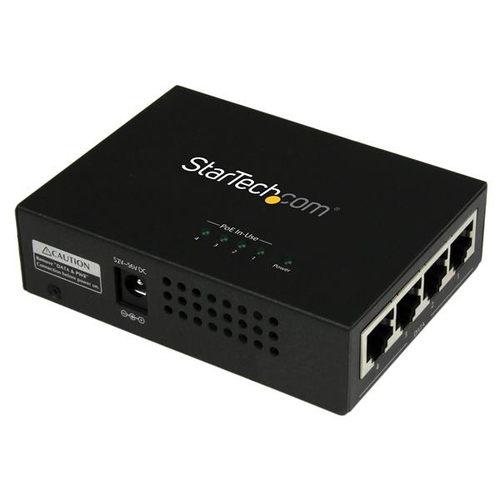

StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af
Product Technical Specification
| Performance | |
| Type | Network transmitter |
| Maximum transfer distance | 100 |
| Data transfer rate | 2000 |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 8 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | PoE,Power |
| Certification | CE, FCC |
| Power | |
| AC input voltage | 100 - 240 |
| Power consumption (max) | 120 |
| Output voltage | 52 |
| Output current | 2.31 |
| Power over Ethernet (PoE) | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 70 |
| Depth | 94 |
| Height | 26 |
| Weight | 204 |
| Technical details | |
| Sustainability certificates | RoHS |
| Packaging content | |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Packaging data | |
| Package width | 180 |
| Package depth | 305 |
| Package height | 90 |
| Package weight | 1632 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.
More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.
The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.
